Engine Control Module (ECM): Installation

Install in the reverse order of removal.

CAUTION:

When the ECM of model with immobilizer has been replaced, be sure to perform the registration of immobilizer system.
- For model without keyless access with push button start, refer to the Type B in "REGISTRATION MANUAL FOR IMMOBILIZER" contact an authorized Subaru Dealership.
- For model with keyless access with push button start, refer to the Type D in "REGISTRATION MANUAL FOR IMMOBILIZER" contact an authorized Subaru Dealership.
When the ECM has been replaced, be sure to perform the registration of VIN. Refer to OPERATION .

NOTE: When replacing the ECM, be careful not to use the ECM of wrong specification to avoid any damage on the fuel injection system.

Tightening torque:

33 N.m (3.4 kg-fm, 24.3 ft-lb)

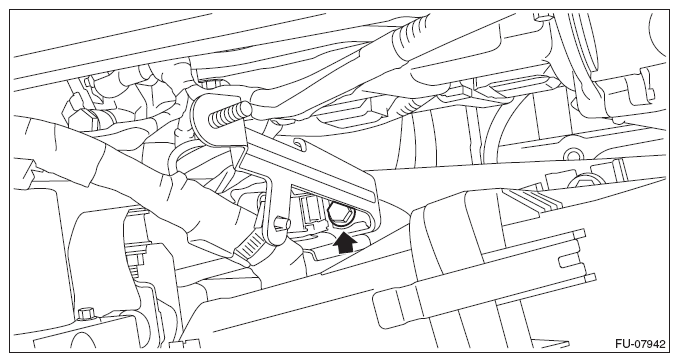

Fig 1: Locating ECM Bracket Bolt

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.8 kg-fm, 5.5 ft-lb)

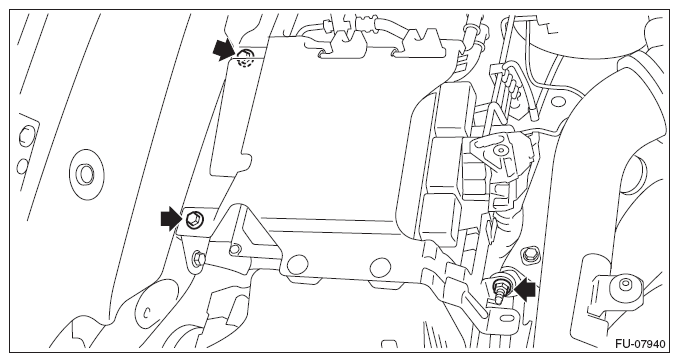

Fig 2: Locating ECM Bracket Nuts

Courtesy of SUBARU OF AMERICA, INC.

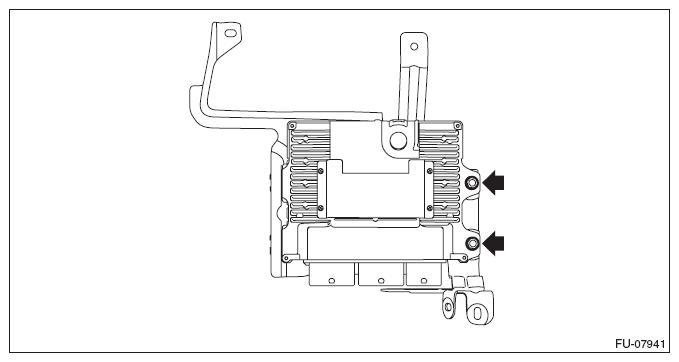

Fig 3: Locating ECM Cover Bolts

Courtesy of SUBARU OF AMERICA, INC.
