Fuel Level Sensor: Installation

  1. Install the fuel level sensor to the fuel pump assembly.
    CAUTION: Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.

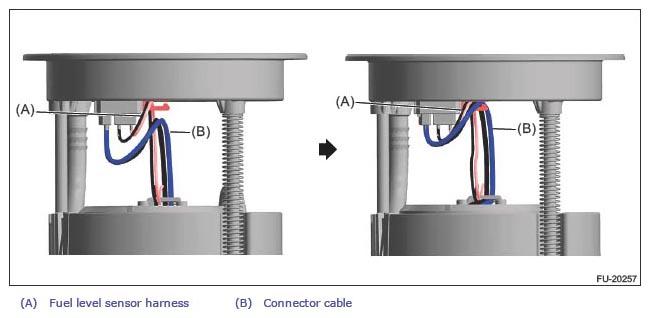

    Fig 1: Identifying Fuel Pump Assembly Sensor
    G11252960Courtesy of SUBARU OF AMERICA, INC.
  2. Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Pump>INSTALLATION .
