Fuel Tank

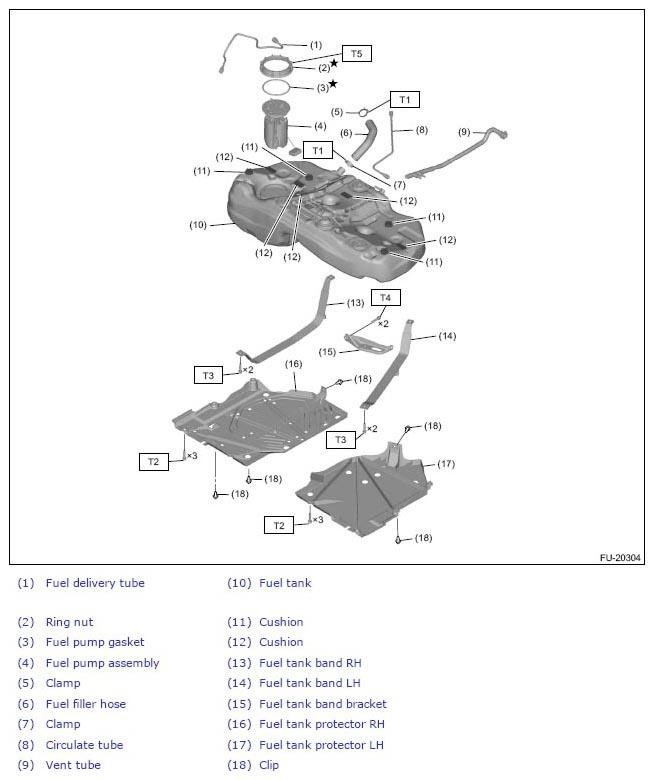

Fig 1: Identifying Fuel Tank Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.5 (0.3, 1.8)

T2: 18 (1.8, 13.3)

T3: 33 (3.4, 24.3)

T4: 37 (3.8, 27.3)

T5: 130 (13.3, 95.9)
