System Block Diagram

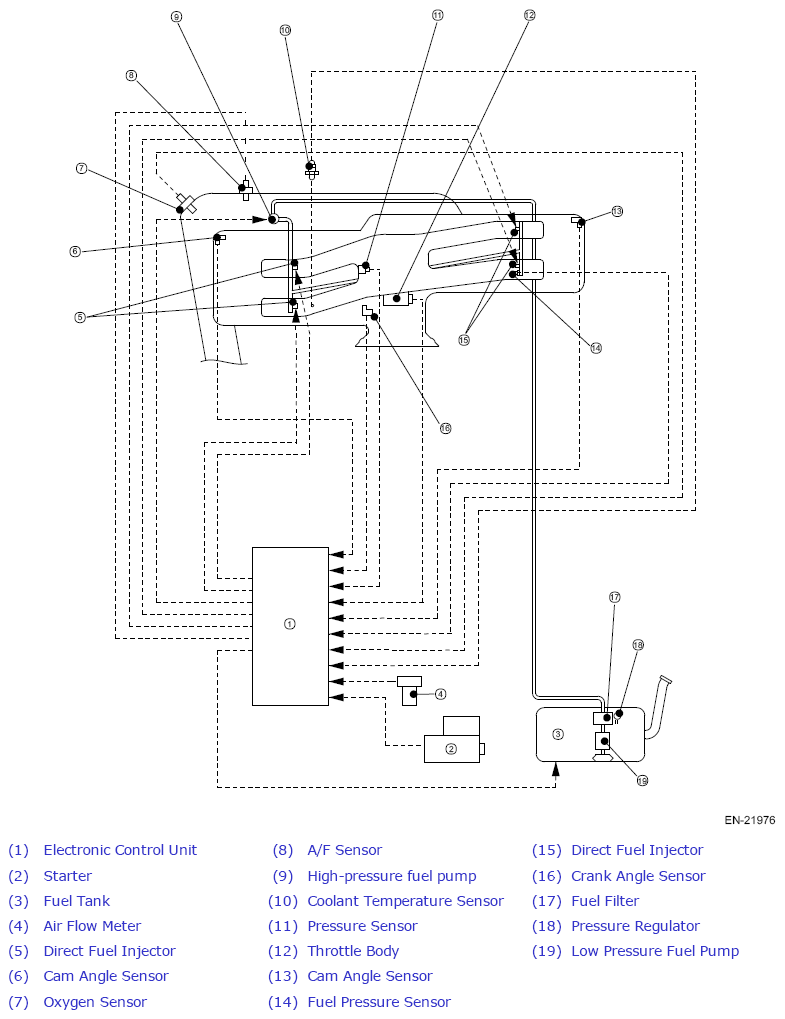

Fig 1: Engine System Block Diagram (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

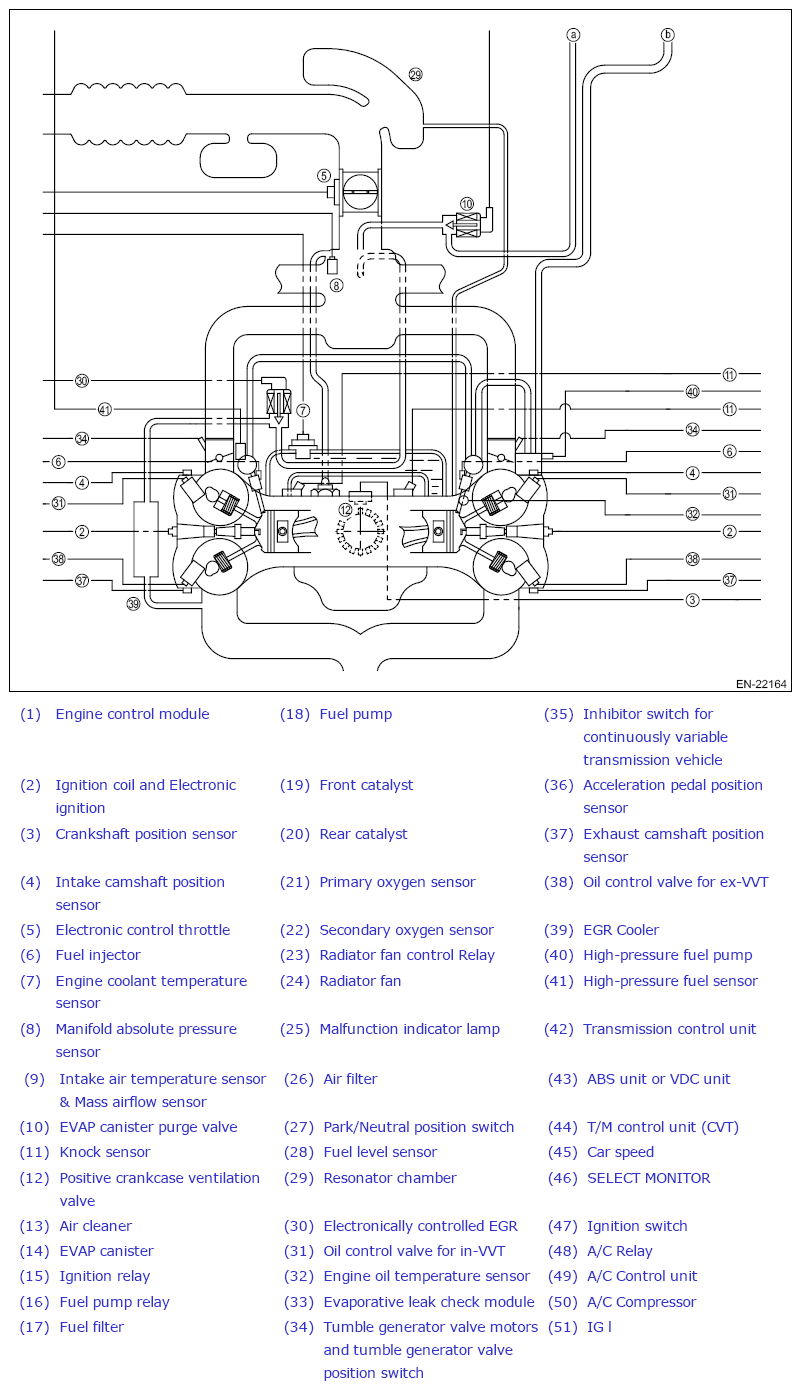

Fig 2: Engine System Block Diagram (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Engine System Block Diagram (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
