System Block Diagram
Main signals used between stereo camera and relevant control module

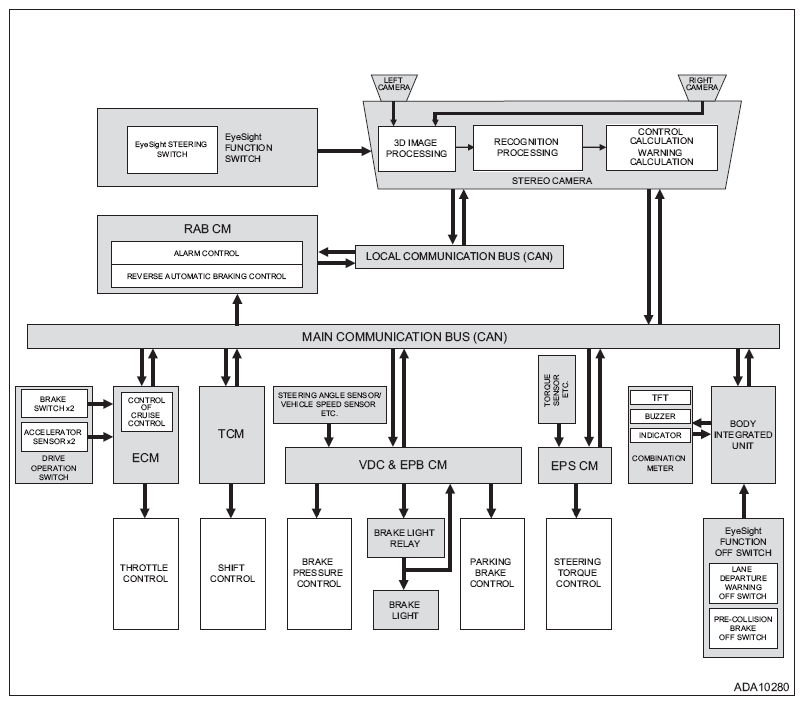

Fig 1: Stereo Camera And Relevant Control Module System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
