Classification Of Symptom Using Freeze Frame Data

Apply the values of «Actual Secondary Pressure» and «Secondary Actual Current» recorded in the freeze frame data onto the graph shown in the following figure, and judge if either low-voltage malfunction or high-voltage malfunction occurs.

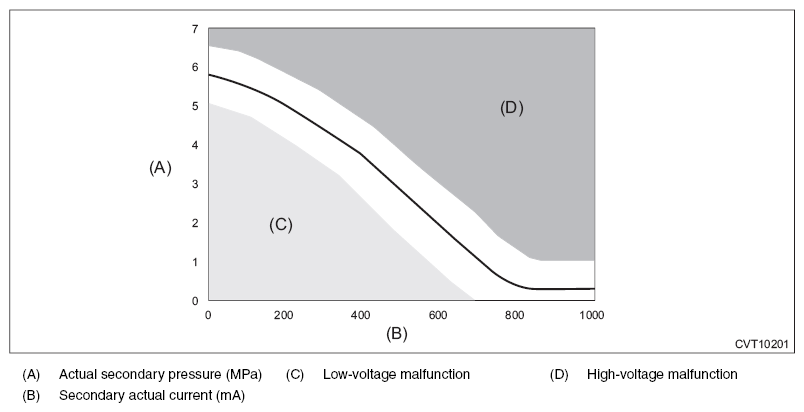

Fig 1: Actual Secondary Pressure Value Graph

Courtesy of SUBARU OF AMERICA, INC.

• Low-voltage malfunction: detected due to insufficient oil pressure
• High-voltage malfunction: detected due to excessive oil pressure

Apply the values of «Actual Secondary Pressure» and «Secondary Actual Current» recorded in the freeze frame data onto the graph shown in the following figure, and judge if either low-voltage malfunction or high-voltage malfunction occurs.

Fig 1: Actual Secondary Pressure Value Graph

Courtesy of SUBARU OF AMERICA, INC.

• Low-voltage malfunction: detected due to insufficient oil pressure
• High-voltage malfunction: detected due to excessive oil pressure
