Power Seat Control Module (Seat With Memory Function)

1. Raise the seat cushion by operating the switch.
2. Remove the front seat from the vehicle.
3. Remove the power seat control module.
   1. Release the hooks on seat front and turn over the cushion cover.
   2. Remove the nuts, and remove the power seat control module.

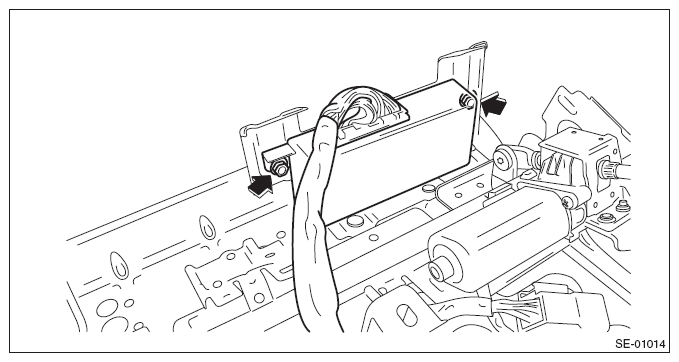

Fig 1: Identifying Power Seat Control Module Nuts

Courtesy of SUBARU OF AMERICA, INC.
