Transmission Control Module (TCM): Installation

Install the TCM.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the harness connector to TCM.
NOTE:
- Install the connector in the reverse order of removal.
- Move the lock lever in the arrow direction, and confirm that a clicking sound is heard.

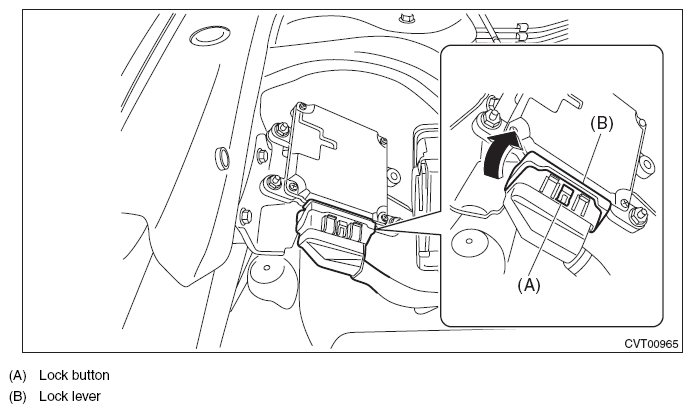

Fig 1: Moving TCM Connector Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. Ref. to INSTALLATION , Air Cleaner Case.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Perform the operation of AT learning mode. Ref. to LEARNING CONTROL
