Starting System & Charging System (2.0L): Starter: Installation

Install in the reverse order of removal.

NOTE:

Tighten the starter and cable stay (a) together using the upper bolt securing the starter.
For the MT model, a bolt is used to the location (b).

Tightening torque:

T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

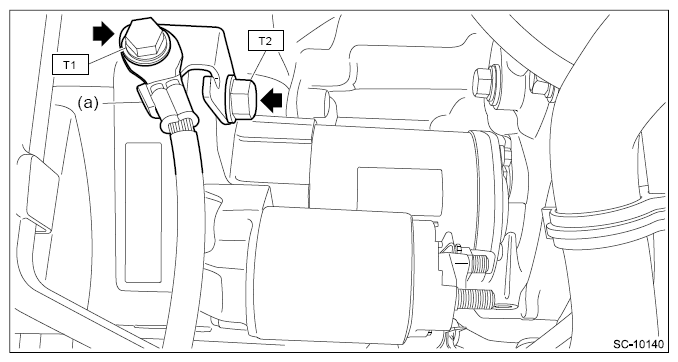

Fig 1: Starter And Cable Stay Using Upper Bolt (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

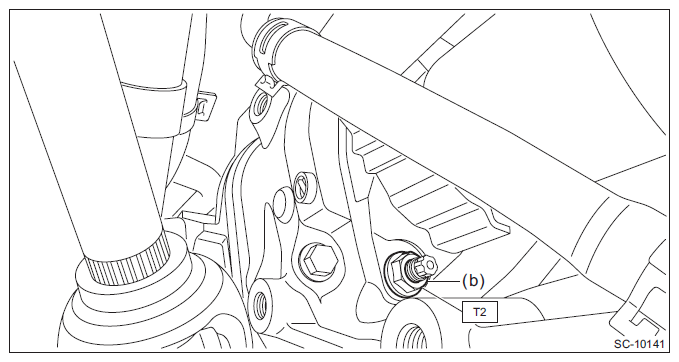

Fig 2: Starter And Cable Stay Using Upper Bolt With Torque Specification (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

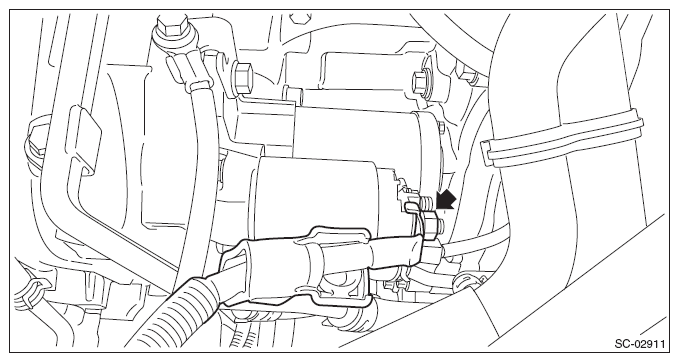

Fig 3: Locating Starter Nut

Courtesy of SUBARU OF AMERICA, INC.
