Cylinder Block 1

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

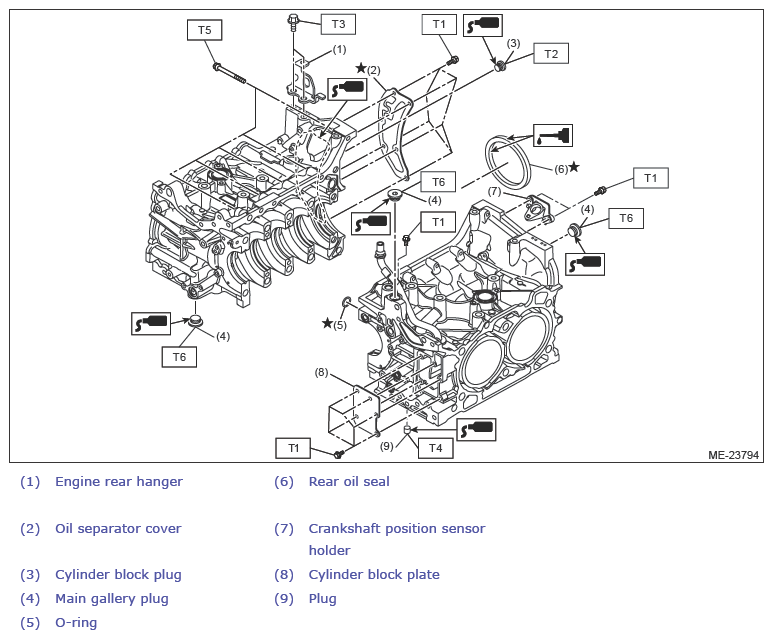

Fig 1: Cylinder Block 1 Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 16 (1.6, 11.8)

T3: 21 (2.1, 15.5)

T4: 23 (2.3, 17.0)

T5: 25 (2.5, 18.4)

T6: Ref. to MECHANICAL (H4DOTC)>CYLINDER BLOCK>ASSEMBLY>CYLINDER BLOCK .
