Front Exhaust Pipe

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

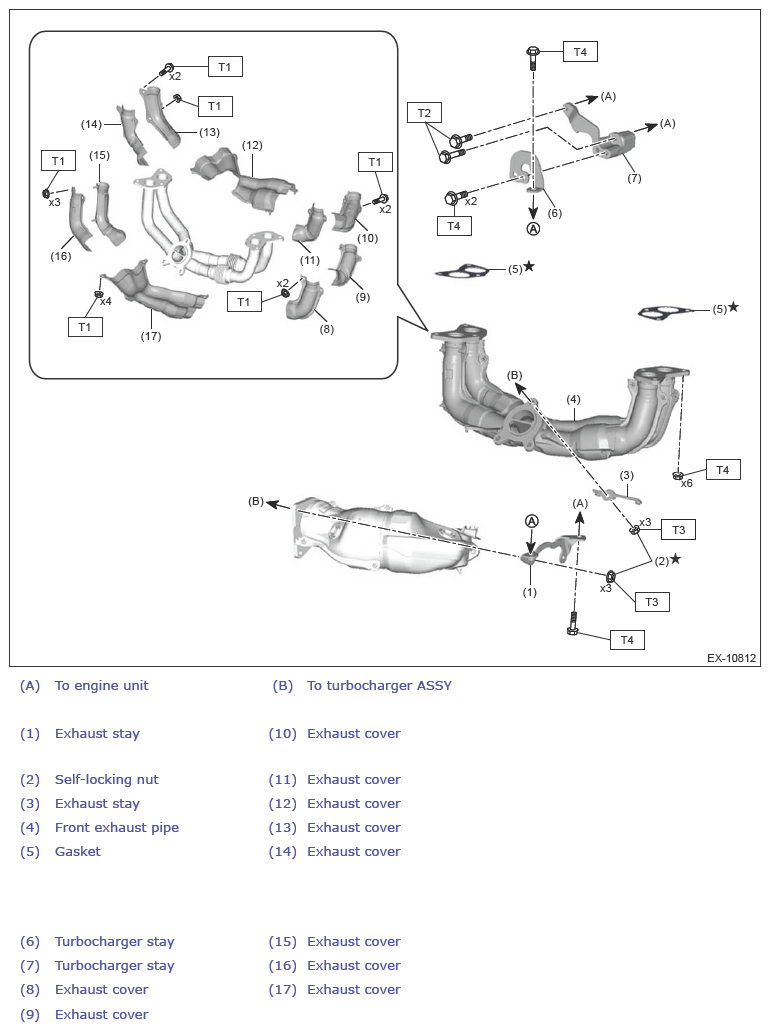

Fig 1: Front Exhaust Pipe Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 19 (1.9, 14.0)

T3: 42.5 (4.3, 31.3)

T4: Ref. to EXHAUST (H4DOTC)>FRONT EXHAUST PIPE>INSTALLATION .
