Rear Reflex Reflector

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

The muffler is extremely hot immediately after driving. Be wary of receiving burns from heated parts.

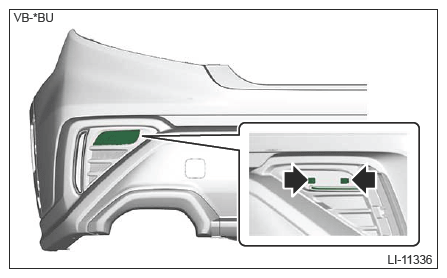

  1. Release the claws and then remove the reflex reflector.
    G14612406Courtesy of SUBARU OF AMERICA, INC.
