Radiator And Radiator Fan

WARNING: This page is about a different variant/trim than selected.

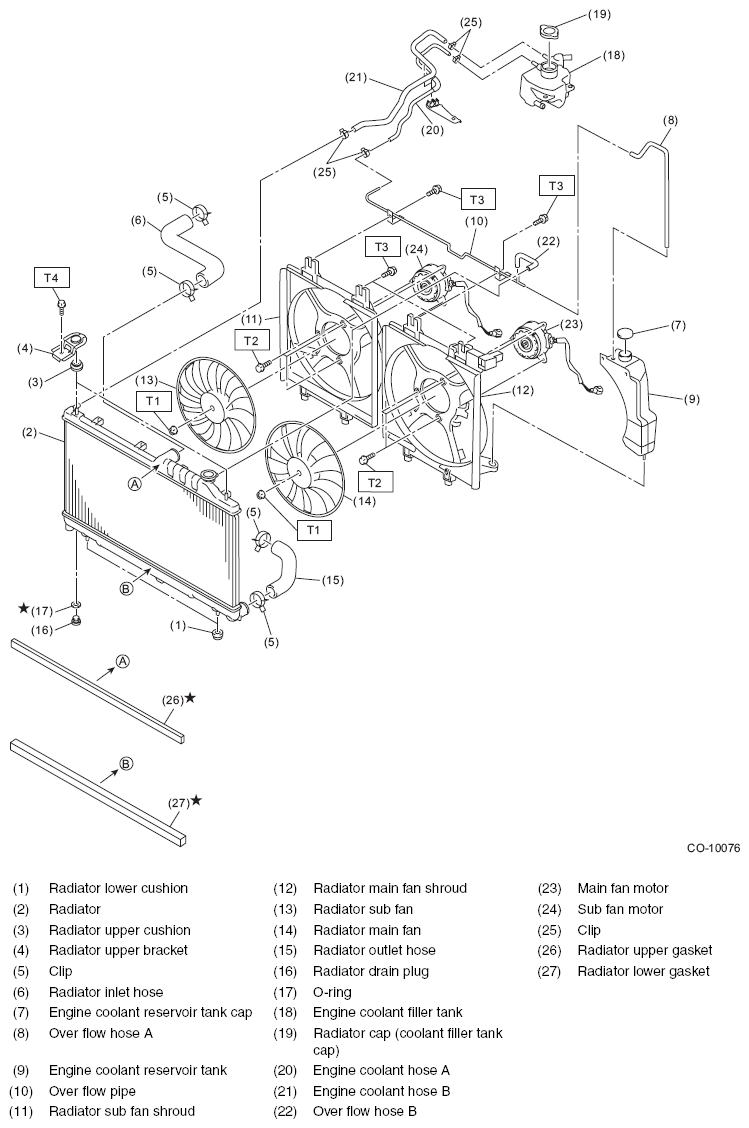

Fig 1: Exploded View Of Radiator And Radiator Fan With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 4.41 (0.45, 3.25)

T3: 7.5 (0.8, 5.5)

T4: 12 (1.2, 8.9)
