DTC B278D Id Code Box Judgment Circuit

DTC DETECTING CONDITION:

When ID code box setting is set to OFF, ID code box ON input is detected.
When ID code box setting is set to OFF, ID code box LIN signal is received.

TROUBLE SYMPTOM:

Engine will not start.

CAUTION: For replacement procedure of Keyless Access Control Module, refer to the "REGISTRATION MANUAL FOR IMMOBILIZER" provided as a separate volume.

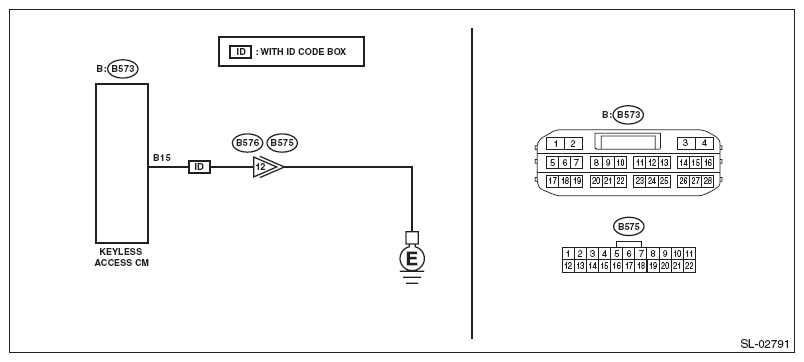

WIRING DIAGRAM:

Push button start system <Ref. to WIRING DIAGRAM , Push Button Start System.>

Fig 1: ID Code Box Judgment Circuit - Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK DTC. Turn the ignition switch to OFF. Using the Subaru Select Monitor, clear the keyless access system memory. <Ref. to CLEAR MEMORY MODE .> Turn the ignition switch to OFF → ON. Read the DTC using Subaru Select Monitor. <Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) .>	Is DTC B278D displayed?	Go to step 2 .	Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
2 CHECK HARNESS (GROUND SHORT CIRCUIT). Disconnect the Keyless Access Control Module connector. Measure the resistance between Keyless Access Control Module connector and chassis ground. Connector & terminal (B573) No. 15 - Chassis ground:	Is the resistance 10 kΩ or more?	Replace the Keyless Access Control Module. <Ref. to Keyless Access Control Module .>	Repair or replace the short circuit of the harness.
