Inspection steps
CAUTION:
- Some functions of the entry & start system (entry function) use the LIN communication system and the CAN communication system. Inspect the communication function by referring to "How to troubleshoot" (refer to HOW TO PROCEED WITH TROUBLESHOOTING ). Confirm that the communication system is functioning properly before proceeding to repair the entry & start system (entry function).
- Before replacing the collation ECM (smart key ECM ASSY), refer to "entry & start system (entry function)". (Refer to ENTRY & START SYSTEM (ENTRY FUNCTION) )
- Check if the electrical key transmitter SUB-ASSY is inside the vehicle.
- Even if you want to check the entry lock operation several times, the setting does not allow you to perform the lock operation more than twice in a row. To perform the entry lock operation more than twice, you have to unlock a door once (you may use any type of unlock operation). This limitation applies only to the entry lock operation. A wireless lock or other types of lock operations can be performed any number of times without any limitations.
- Check the power door lock operation.
- Operate the door control switch on the master switch ASSY, and check if the door locks or unlocks properly according to the switch operation you have performed.
Criteria: The door lock operation is performed properly.
OK: Go to next step
NG: Go to "Power door lock control system" ("Symptom table").
- Operate the door control switch on the master switch ASSY, and check if the door locks or unlocks properly according to the switch operation you have performed.
- Read numerical values using the SSM4.
- Connect the SSM4 to the DLC3.
- Turn the ignition switch to ON.
- Turn on the SSM4.
- Input the following menus: [Keyless Access(Collation ECM)] →[Data monitor]
- Based on the contents of the SSM4 display, read the [Data monitor].RANGE DESCRIPTION - ENTRY AND START
Tester display Measurement items/range Normal condition Notes for diagnosis [D seat lock person sensor] Front door outer handle ASSY (driver's side) (lock sensor)/[OFF] or [ON] [OFF]: The front door outer handle ASSY (driver's side) (lock sensor) is not touched. [ON]: The front door outer handle ASSY (driver's side) (lock sensor) is touched. - This item displays whether the lock sensor is ON or OFF (even when the sensor is properly touched [ON] is displayed only momentarily).
- This item is displayed under [Data monitor]. When the entry lock function does not work, use this item to check if the unlock sensor is faulty.
Criteria: On the SSM4 display, [ON] or [OFF] is displayed as described in the table above.
OK: Go to next step
NG: Go to Step 3.
Replacement of the collation ECM (smart key computer ASSY)
- Check the harnesses and connectors (collation ECM (smart key ECM ASSY) - front door outer handle ASSY).
- Disconnect the D41 and D48 collation ECM (smart key ECM ASSY) connectors.
- Disconnect the E1 front door outer handle ASSY connector.
- Measure the resistance according to the following table.
Resistance
Inspection terminals Inspection conditions Standard value D41-20 (TSW1) - E1-1 (TRG+) Always 1 Ωor less D48-11 (GND) - Chassis ground Always 1 Ωor less D41-20 (TSW1) - chassis ground Always 10 kΩ or more OK: Go to next step
NG: Repair or replace the harnesses or connectors.
- Inspect the front door outer handle ASSY (driver's door) unit.
- Reconnect the D41 and the D48 connectors of the collation ECM (smart key ECM ASSY).
- Reconnect the E1 front door outer handle ASSY (driver's door) connector.
- Using an oscilloscope, check the waveform.
Criteria

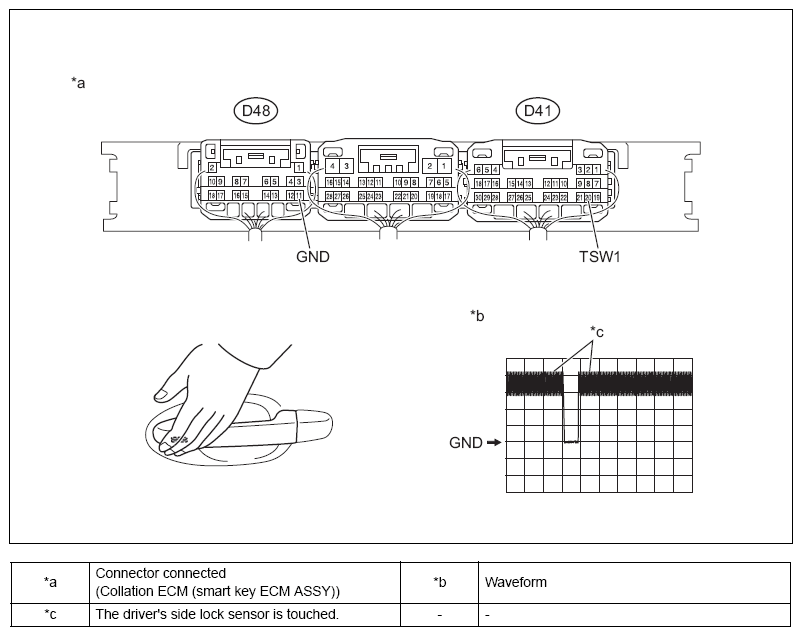

Inspection terminals Switch conditions Tool setting Specified condition D41-20 (TSW1) - D48-11 (GND) Procedure: - The engine switch is OFF.
- The electrical key transmitter SUB-ASSY is outside the vehicle.
- All doors are closed.
- Driver's door lock sensor, not touched →touched
2 V/DIV., 500 ms/DIV. Pulse generation (Refer to the waveform above) OK: Go to next step
NG: Replace the front door outer handle ASSY (driver's door).
Replacement of the collation ECM (smart key computer ASSY)
