Unit Inspection

  1. Push button start switch check
    1. Resistance check
      1. Measure the resistance between connector terminals.
        STANDARD VALUE RESISTANCE SPECIFICATION

        Inspection terminals Inspection conditions Standard value
        5 (SSW1) - 6 (AGND) When the switch is not pressed 10 k Ωor more
        1 (SSW2) - 6 (AGND) When the switch is not pressed 10 k Ωor more
        5 (SSW1) - 6 (AGND) When the switch is pressed Less than 1 Ω
        1 (SSW2) - 6 (AGND) When the switch is pressed Less than 1 Ω
        NOTE: If the resistance is not within the standard value, replace the push button start switch.
    2. LED illumination check
      1. Connect the battery positive and negative to the connector terminals and check the LED illumination condition.
        TERMINAL DESCRIPTION - CRITERIA

        Terminal No. (Battery positive - battery negative) Criteria
        9 (SWIL) - 6 (GND) Character illumination lights up
        NOTE: If the resistance is not within the standard value, replace the push button start switch.

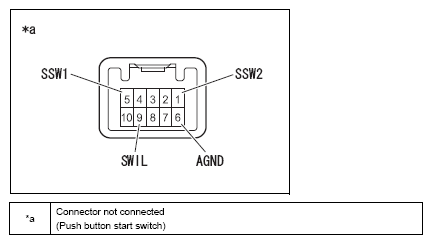

      G12587337Courtesy of SUBARU OF AMERICA, INC.
