Subaru
>>
2018
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (Diagnostics) (System & Circuit Tests)
>>
EFI System (FA20)
>>
Starter System (Models Without Smart Entry & Start System)
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

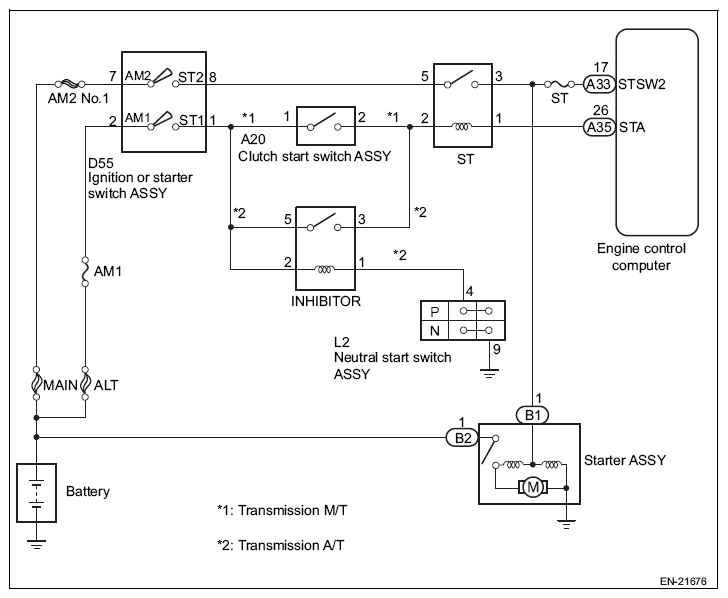

Circuit figure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
