DTC B2285: Steering Lock Position Signal Abnormal
>>

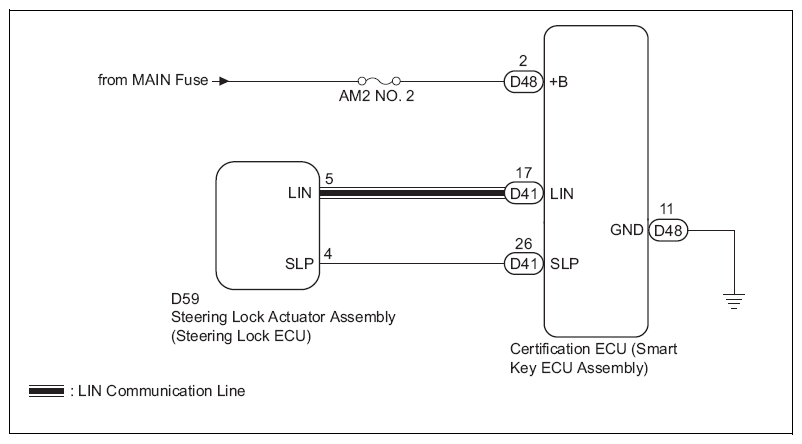

Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
