CVT Model

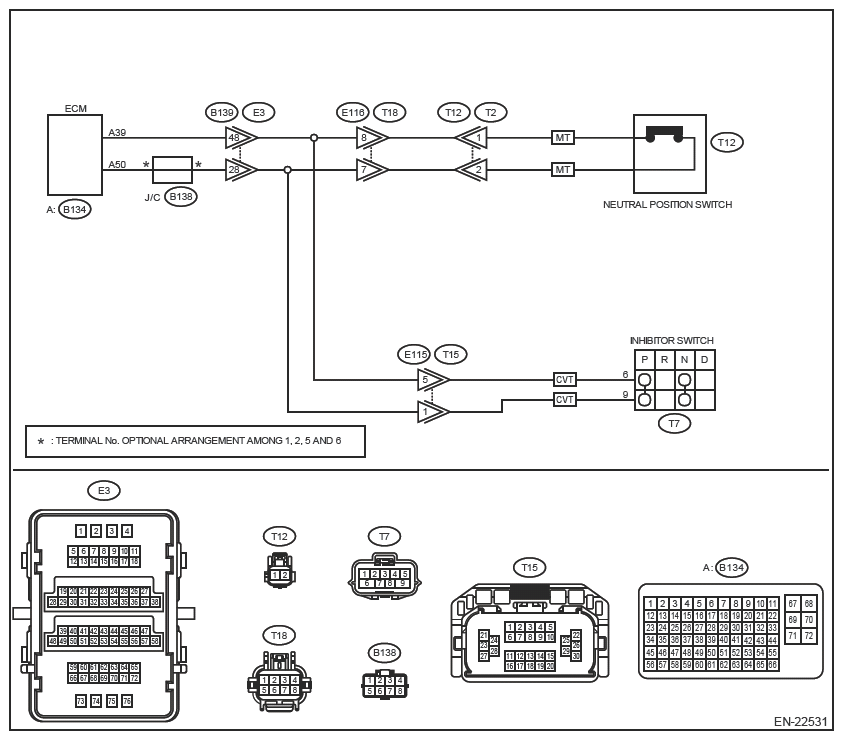

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM (CROSSTREK MODEL)>Engine Electrical System>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK SELECT CABLE  .

   Check the select cable.

   Is there any fault in select cable?

   Yes:  Repair or adjust the select cable. Ref. to CONTROL SYSTEMS>SELECT CABLE .

   No:  Go to  2.

2. CHECK INPUT SIGNAL OF ECM  .
   1. Turn the ignition switch to ON.
   2. Place the select lever in other than "P" range and "N" range.
   3. Measure the voltage between ECM connector and chassis ground.

      Connector & terminal

      (B134) No. 39 (+) - Chassis ground (-):

      Is the voltage 10 V or more?

      Yes:  Repair the poor contact of ECM connector.

      No:  Go to  3.

3. CHECK HARNESS BETWEEN ECM AND TRANSMISSION HARNESS CONNECTOR (SHORT TO GROUND)  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from ECM.
   3. Disconnect the connector from inhibitor switch.
   4. Measure the resistance between ECM connector and chassis ground.

      Connector & terminal

      (B134) No. 39 - Chassis ground:

      Is the resistance 1 MΩ or more?

      Yes:  Replace the inhibitor switch.

      No:  Repair the harness and connector.

      NOTE: In this case, repair the following item:

      • Short circuit to ground in harness between ECM connector and inhibitor switch connector
      • Poor contact of coupling connector
