Crankshaft Position Sensor: Removal

  1. Remove the collector cover.

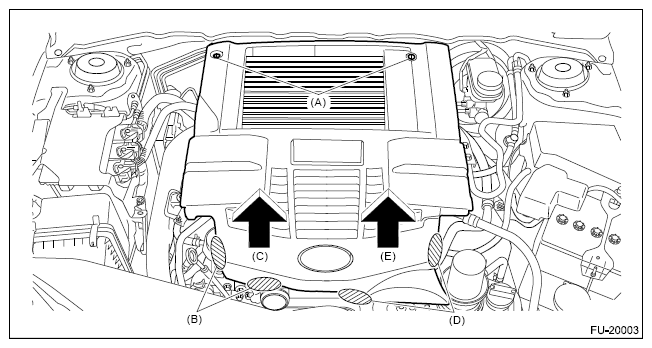

    1. Remove the clip (A).
    2. Hold the shaded area (B) by hand and carefully pull the RH side (C) upward.
    3. Hold the shaded area (D) by hand and carefully pull the LH side (E) upward.
    G12508981Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  4. Remove the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Throttle Body>REMOVAL .

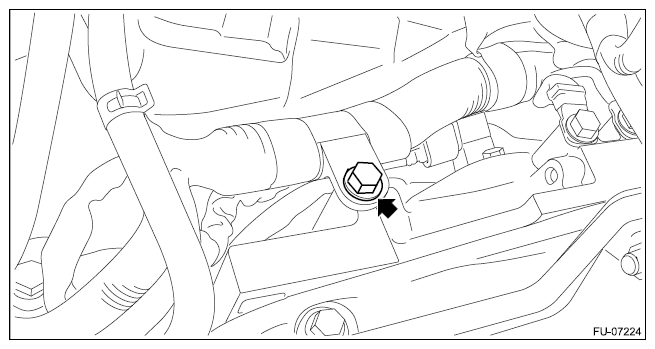

  5. Remove the bolts securing the engine wiring harness.
    G12508982Courtesy of SUBARU OF AMERICA, INC.

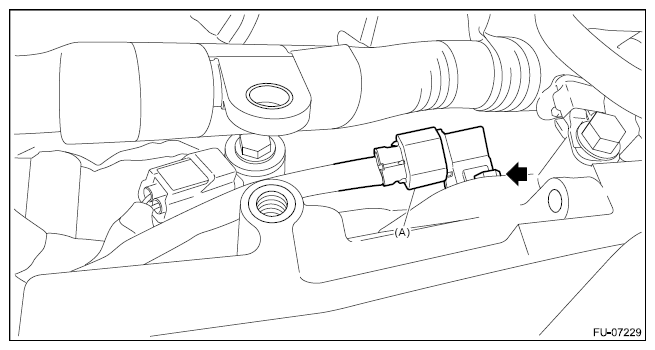

  6. Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.
    G12508983Courtesy of SUBARU OF AMERICA, INC.
