Engine Control System (Diagnostics - Introduction) (H4DO): Electrical Component Location: Location: Sensor

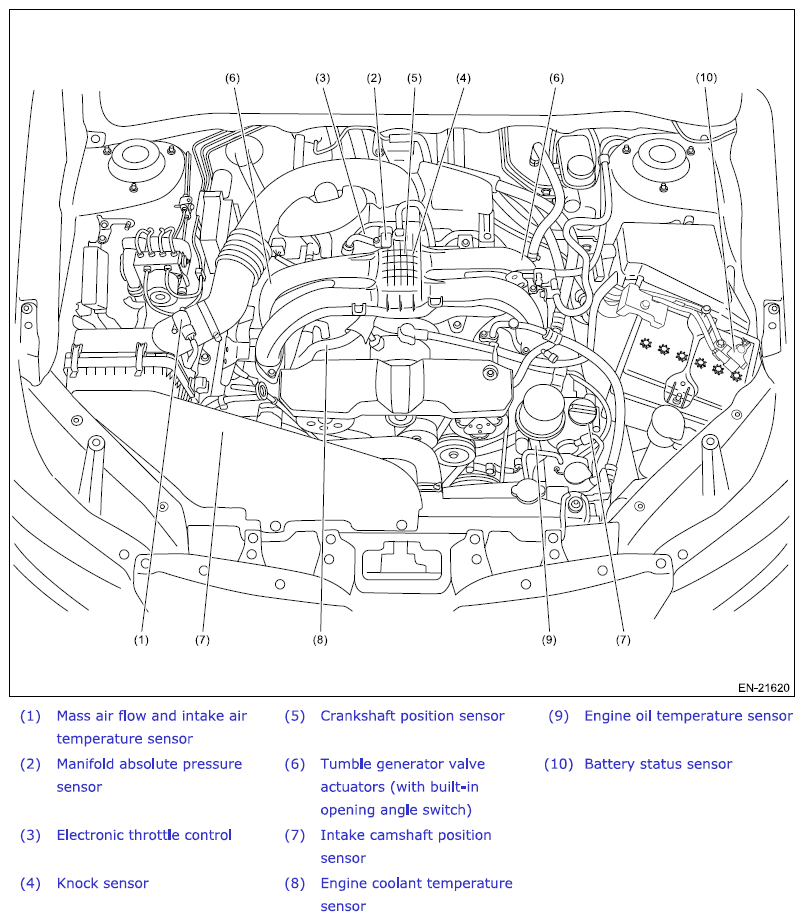

G12519014Courtesy of SUBARU OF AMERICA, INC.

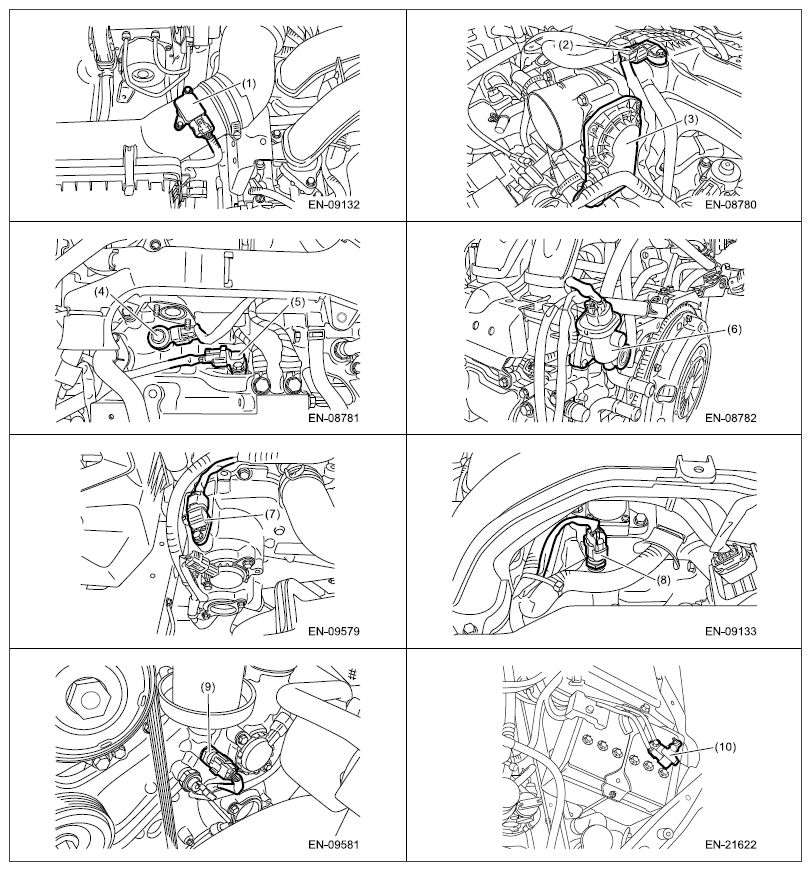

G12519015Courtesy of SUBARU OF AMERICA, INC.

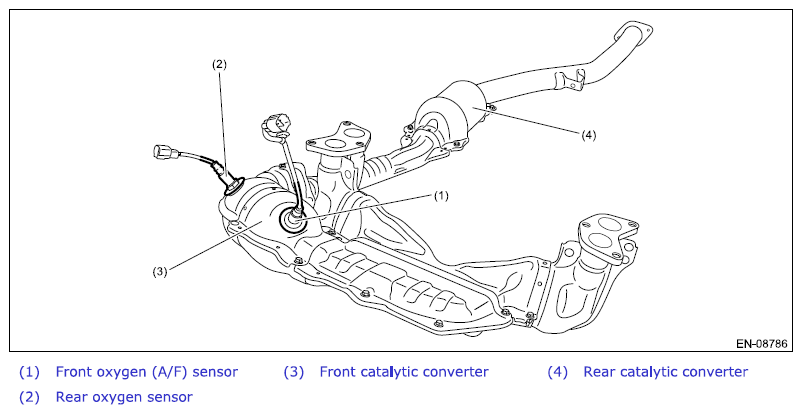

G12519016Courtesy of SUBARU OF AMERICA, INC.

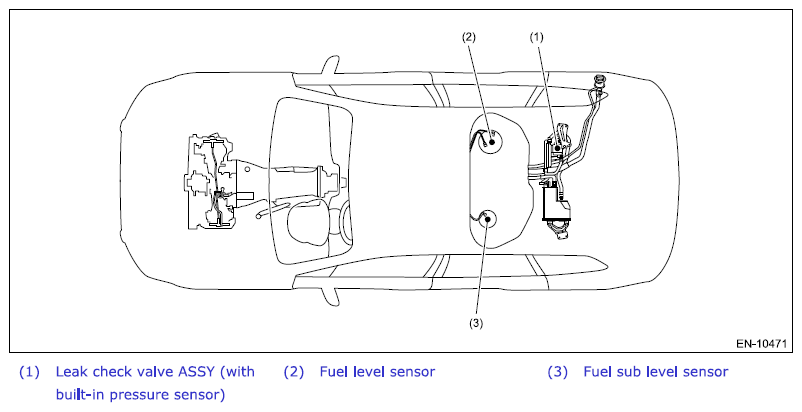

G12519017Courtesy of SUBARU OF AMERICA, INC.

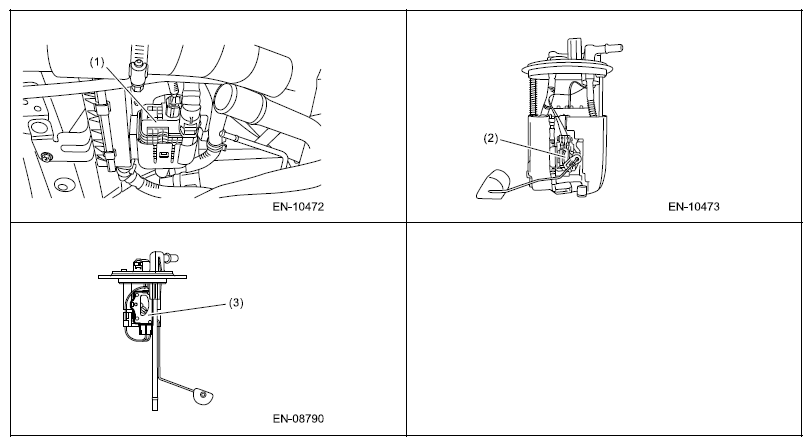

G12519018Courtesy of SUBARU OF AMERICA, INC.
