Oil Control Solenoid: Inspection

  1. Check that the oil control solenoid has no deformation, cracks or other damages.

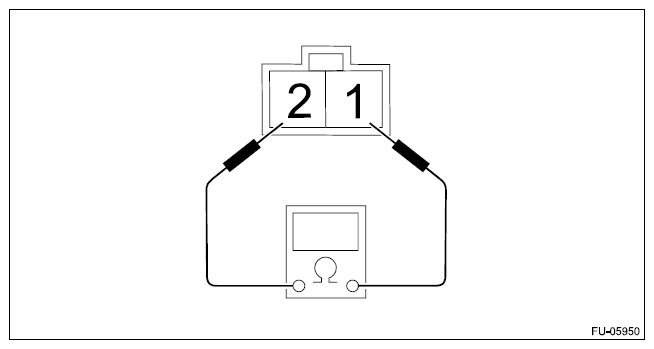

  2. Measure the resistance between the oil control solenoid terminals.
    G12505374Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Standard
    1 and 2 7.25±0.4 Ω (when 20°C (68°F))
