Components With Torque Specifications

Fig 1: Locating Front Suspension Components

G12405928

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 45 (4.6, 33.2)

T2: 60 (6.1, 44.3)

T3: 65 (6.6, 47.9)

T4: 90 (9.2, 66.4)

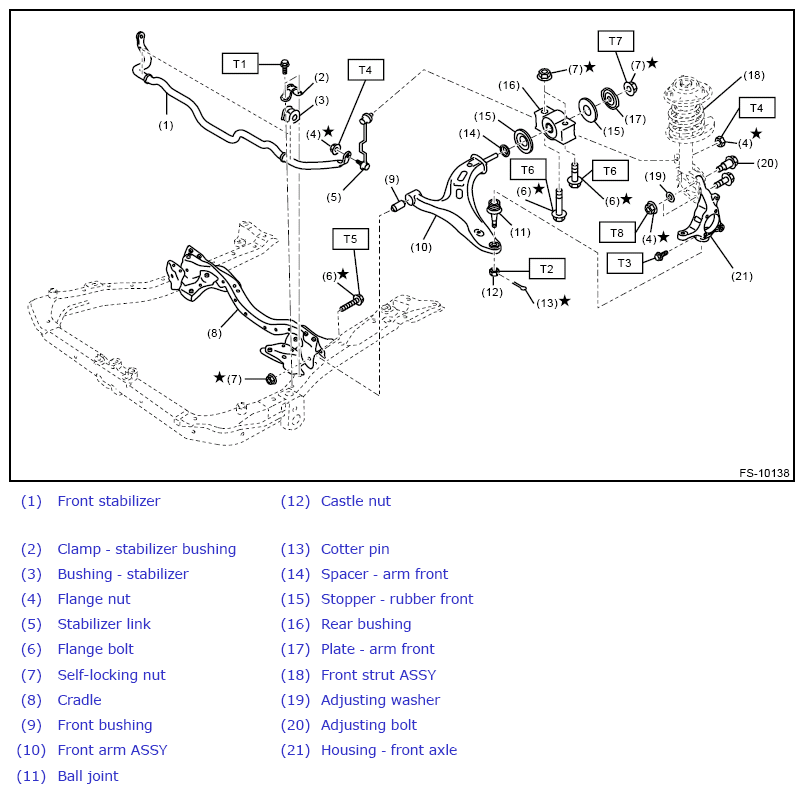

Fig 2: Locating Front Suspension Components

G12405929

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 39 (4, 28.8)

T3: 50 (5.1, 36.9)

T4: 60 (6.1, 44.3)

T5: 95 (9.7, 70.1)

T6: 130 (13.3, 95.9)

T7: 140 (14.3, 103.3)

T8: 155 (15.8, 114.3)

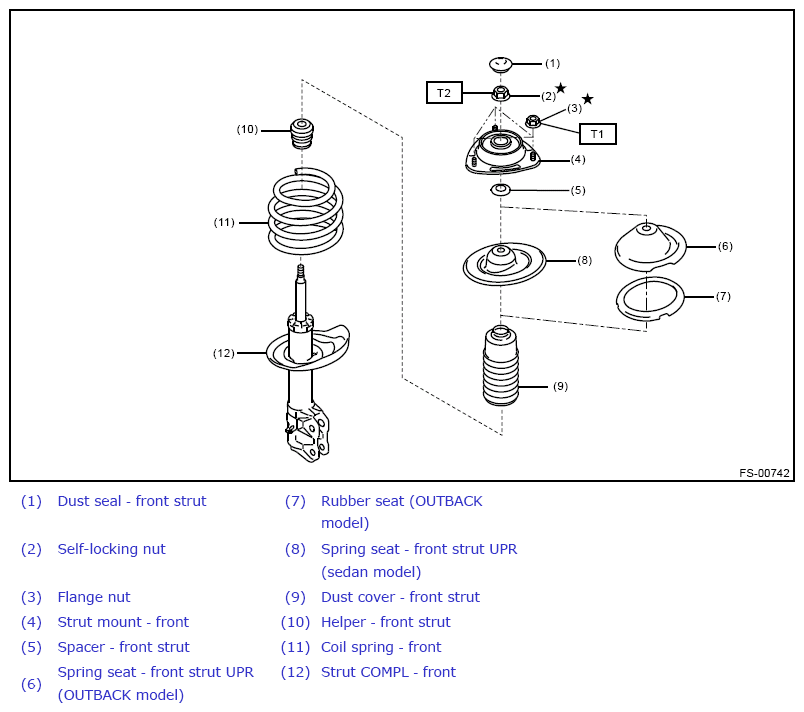

Fig 3: Front Suspension Components

G12405930

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2, 14.8)

T2: 55 (5.6, 40.6)
