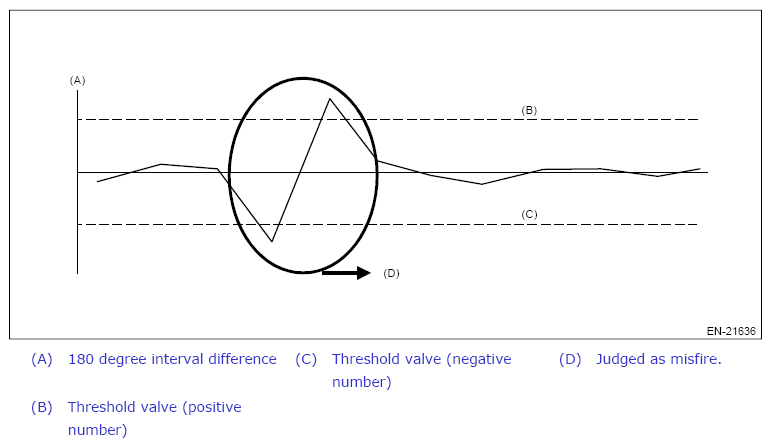

180° Interval Difference Method
Diagnostic value
180 degree interval difference = (A - B) - (B - C)
Judge as a misfire in the following cases.
180 degree interval difference = Judgment value of positive side
180 degree interval difference = Judgment value of negative side
(Diagnostic value before 180° CA)
Courtesy of SUBARU OF AMERICA, INC.
