Clutch Assembly

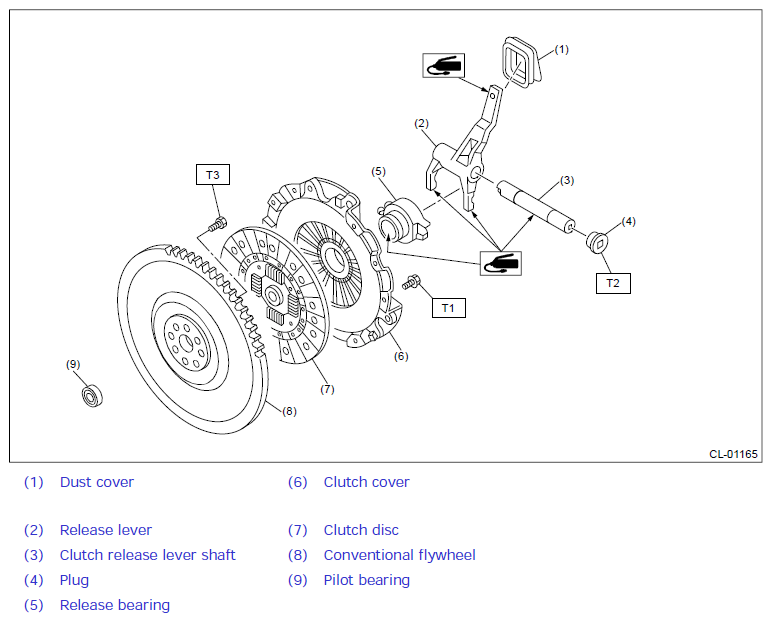

Fig 1: Clutch Assembly Components (STI Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 48 (4.9, 35.4)

T3: 75 (7.6, 55.3)

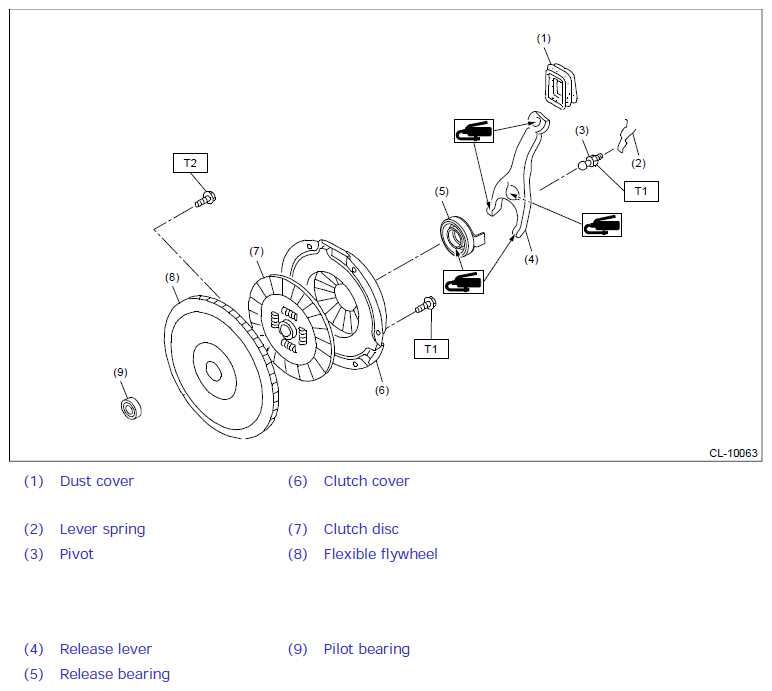

Fig 2: Clutch Assembly Components (Except For STI Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2:  Ref. to CLUTCH SYSTEM>Flywheel>INSTALLATION>EXCEPT FOR STI MODEL .
