Master Cylinder: Installation
- Attach the clutch hose bracket to the bulkhead.
Tightening Torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)

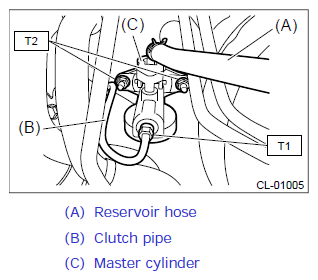

- Install the master cylinder to the body, and connect the clutch pipe and the reservoir hose.
Tightening Torque:
T1: 15 N.m (1.5 kgf-m, 11.1 ft-lb)
T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Connect the push rod of the master cylinder, and install the clevis pin and snap pin.CAUTION: Always use a new clevis pin.NOTE: Apply grease to the clevis pin.
- Install the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>INSTALLATION
- Fill the recommended brake fluid. Ref. to CLUTCH SYSTEM>Clutch Fluid
- After bleeding air from the clutch system, ensure that the clutch operates properly.
- Install the instrument panel lower cover. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>INSTALLATION
- Install the intercooler. Ref. to INTAKE (INDUCTION) (STI)>Intercooler>INSTALLATION Ref. to INTAKE (INDUCTION) (EXCEPT FOR STI)>Intercooler>INSTALLATION
- Install the collector cover. (Except for STI model) Ref. to INTAKE (INDUCTION) (EXCEPT FOR STI)>Collector Cover>INSTALLATION
- Connect the battery ground terminal. Ref. to NOTE>NOTE>BATTERYNOTE: For models other than STI model, connect the ground terminal to battery sensor.
