Operating Cylinder: Installation

Install in the reverse order of removal.
NOTE:
- Use a new gasket.
- Before installing the operating cylinder, apply grease to the contact point of the release lever and operating cylinder.
  Grease:

  NICHIMOLY N-130 or equivalent

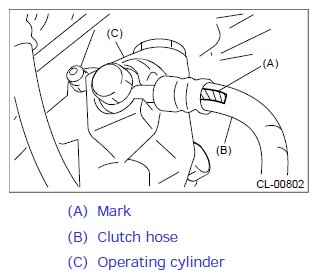

- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.
- STI model
  Tightening Torque:

  T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

  T2: 41 N.m (4.2 kgf-m, 30.2 ft-lb)

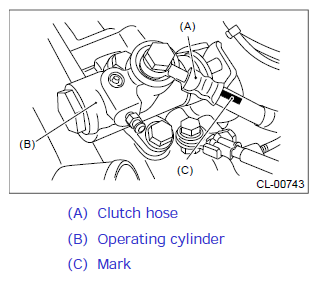

- Except for STI model
  Tightening Torque:

  T1: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

  T2: 37 N.m (3.8 kgf-m, 27.3 ft-lb)
After bleeding air from the operating cylinder, ensure that the clutch operates properly.
Ref. to CLUTCH SYSTEM>Clutch Fluid Air Bleeding
