Diagnostic Method

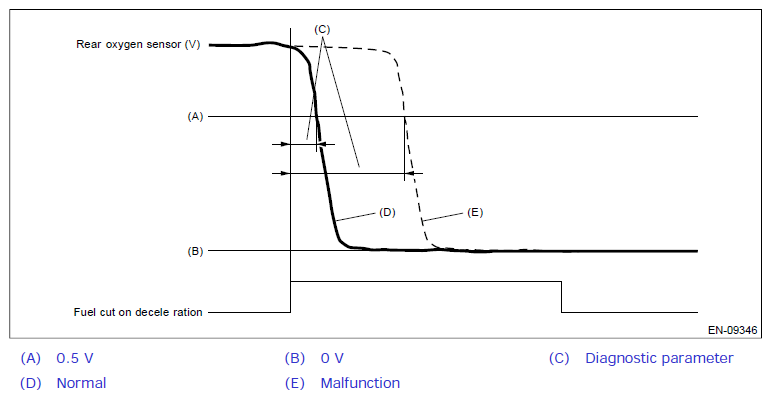

Detect the trouble by calculating the time from the beginning of the fuel cut to the beginning of the rear oxygen sensor voltage starting to drop.
Judge as NG when the following conditions are established.
JUDGMENT VALUE SPECIFICATION
| Malfunction Criteria | Threshold Value |
|---|---|
| Time when rear oxygen sensor voltage changed to 0.5 V after the fuel cut started | > 4000ms |
Time needed for diagnosis: Less than 1 second
Malfunction indicator light illumination: Illuminates as soon as a malfunction occurs.
