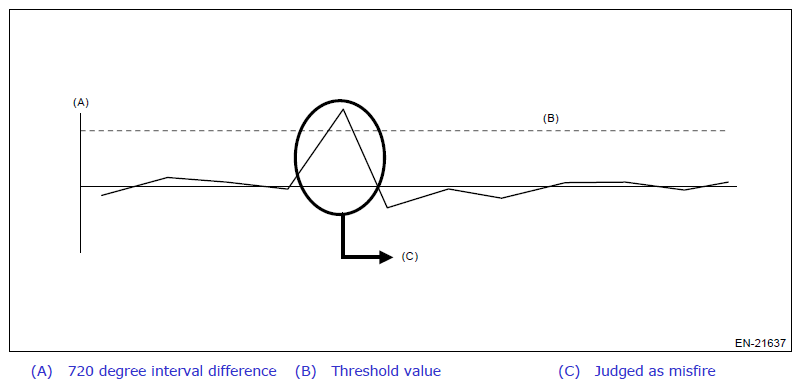

720° Interval Difference Method

Diagnostic value 720 degree interval difference = (B - A) - (F - E)
Misfire judgment 720 degree interval difference>Judgment value → Judged as misfire
G12456790Courtesy of SUBARU OF AMERICA, INC.
