DTC P0851: Park/Neutral Switch Input Circuit Low: Notes
DTC detecting condition:
Detected when two consecutive driving cycles with fault occur.
Trouble symptom:
Improper idling
CAUTION:
After servicing or replacing faulty parts, perform Clear Memory Mode Ref. to ENGINE (DIAGNOSTICS) (STI)>Clear Memory Mode>OPERATION
, and inspection mode Ref. to ENGINE (DIAGNOSTICS) (STI)>Inspection Mode>PROCEDURE
.

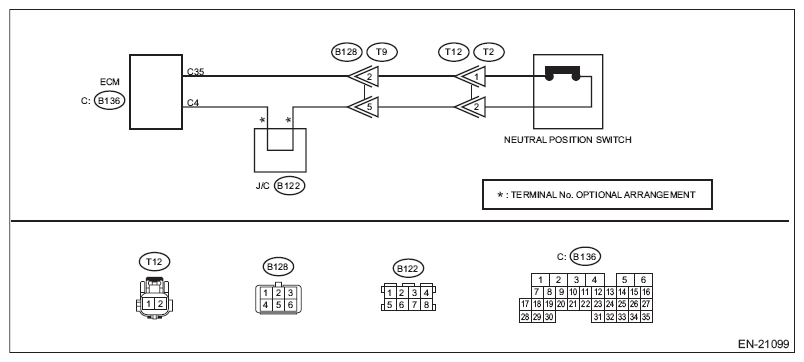

Engine Electrical System Ref. to WIRING SYSTEM>Engine Electrical System>WIRING DIAGRAM .
- CHECK INPUT SIGNAL OF ECM
.
- Turn the ignition switch to ON.
- Place the gear shift lever in a position other than neutral.
- Measure the voltage between ECM connector and chassis ground.
Connector & terminal
(B136) No. 35 (+) - Chassis ground (-):
Is the voltage 10 V or more?
Yes: Repair the poor contact of ECM connector.
No: GO to 2.
- CHECK HARNESS BETWEEN ECM AND NEUTRAL POSITION SWITCH CONNECTOR
.
- Turn the ignition switch to OFF.
- Disconnect the connector from ECM.
- Disconnect the connector from the neutral position switch.
- Measure the resistance between ECM connector and chassis ground.
Connector & terminal
(B136) No. 35 - Chassis ground:
Is the resistance 1 MΩ or more?
Yes: Replace the neutral position switch. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>Neutral Position Switch .
No: Repair the short circuit to ground harness between ECM connector and neutral position switch connector.
