Intake Side

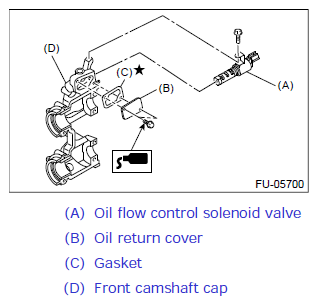

- Install the oil flow control solenoid valve.
Tightening Torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Apply liquid gasket to the two bolts securing oil return cover.
Liquid gasket:
THREE BOND 1324 (Part No. 004403042) or equivalent
- Attach the oil return cover and gasket.
Tightening Torque:
9 N.m (0.9 kgf-m, 6.6 ft-lb)
NOTE: Use a new gasket.
