180° Interval Difference Method
Diagnostic value

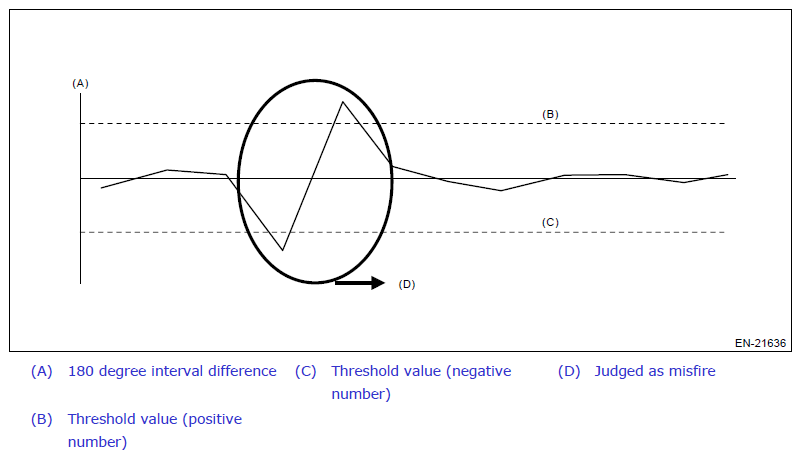

180 degree interval difference = (B - A) - (F - B)/4
Judge as a misfire in the following cases.
180 degree interval difference>Judgment value of positive side
180 degree interval difference = Judgment value of negative side
(Diagnostic value before 180° CA)
Courtesy of SUBARU OF AMERICA, INC.
