Intake Manifold Assembly: Assembly

Connect the fuel delivery pipe to the fuel pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE B) .

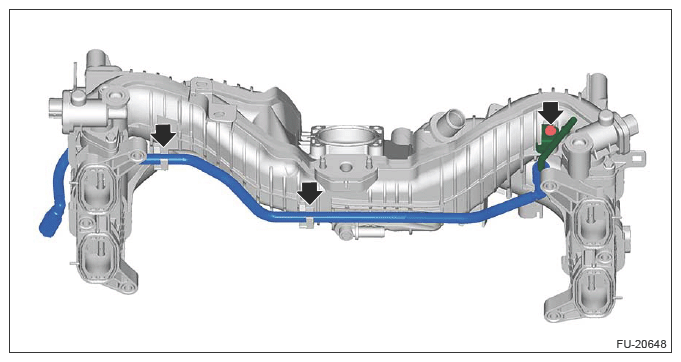

Install the fuel pipe and fuel delivery pipe.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the vacuum pipe assembly. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>VACUUM PIPE ASSEMBLY>INSTALLATION .
Install the check valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>CHECK VALVE>INSTALLATION .
Install the manifold absolute pressure and intake air temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>MANIFOLD ABSOLUTE PRESSURE AND INTAKE AIR TEMPERATURE SENSOR>INSTALLATION .
Install the purge control solenoid valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>PURGE CONTROL SOLENOID VALVE>INSTALLATION .

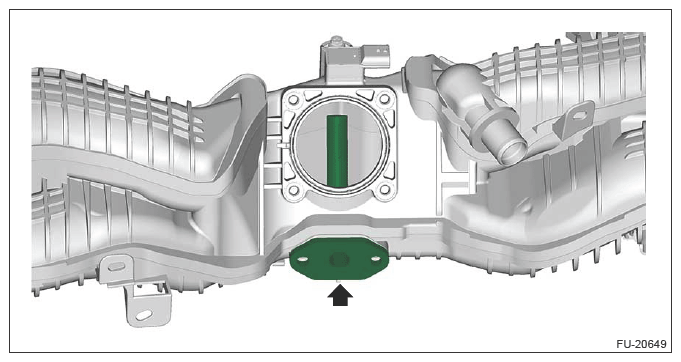

Set a new gasket, and temporarily install the EGR pipe No. 1.

Courtesy of SUBARU OF AMERICA, INC.
When the engine coolant has been drained before removing the intake manifold assembly.
1. Install the throttle body. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>THROTTLE BODY>INSTALLATION .
