DTC P2127: Throttle/Pedal Position Sensor/Switch "E" Circuit Low: Notes
DTC detecting condition:
Immediately at fault recognition
Trouble symptom:
- Improper idling
- Poor driving performance

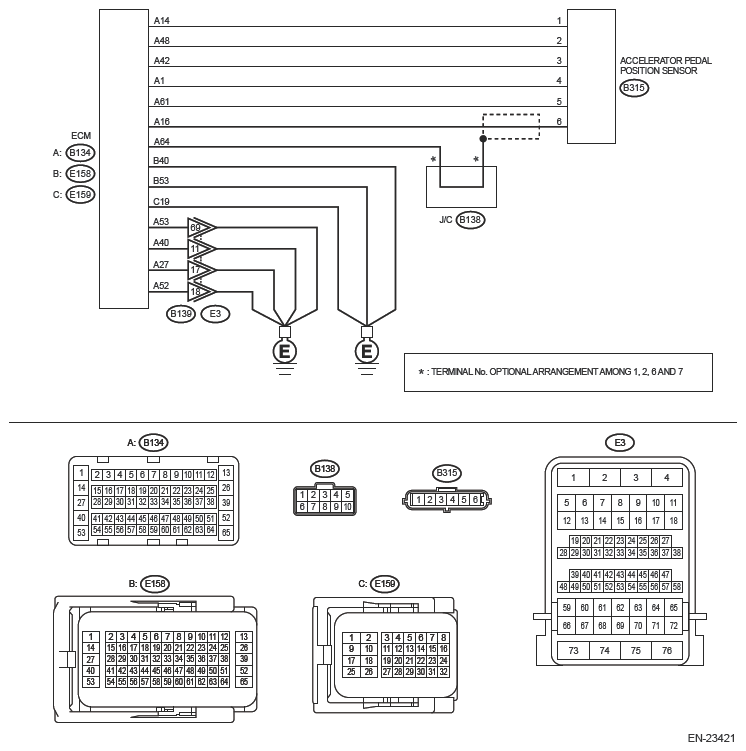

Wiring diagram:
Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .
- CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR (SHORT TO GROUND).
- Turn the ignition switch to OFF.
- Disconnect the connector from ECM.
- Disconnect the connector from the accelerator pedal position sensor.
- Measure the resistance between the ECM connector and engine ground.
Connector and terminal.
(B134) No. 14 - Engine ground:
(B134) No. 42 - Engine ground:
Is the resistance 1 MΩ or more?
Yes : Go to 2.
No : Repair the short circuit to ground in harness between ECM connector and accelerator pedal position sensor connector.
- CHECK SHORT CIRCUIT INSIDE ECM (SHORT TO GROUND).
- Connect the connector to ECM.
- Measure the resistance between accelerator pedal position sensor connector and chassis ground.
Connector and terminal.
(B315) No. 3 - Chassis ground:
Is the resistance 1 MΩ or more?
Yes : Replace the accelerator pedal. Ref. to SPEED CONTROL SYSTEMS (H4DOTC)>ACCELERATOR PEDAL .
No : Repair the short circuit to ground in harness between ECM connector and accelerator pedal position sensor connector. Replace the ECM if defective. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ENGINE CONTROL MODULE (ECM) .
