- Removal of separate type rear seat cushion ASSY (Refer to REMOVAL
)
- Removal of the separate type rear seat cushion ASSY LH
NOTE:
Remove the part in the same manner as RH side.
- Removal of the bench type rear seat backrest ASSY (Refer to
REMOVAL
)
- Removal of the front door scuff plate RH (Refer to REMOVAL
, Step 8
)
- Removal of front door scuff plate LH
NOTE:
Remove the part in the same manner as RH side.
- Removal of the front door opening trim weather strip RH
- Remove the front door opening trim weather strip RH to the extent that the luggage compartment trim side cover RH can be removed.
- Removal of front door opening trim weather strip LH
NOTE:
Remove the part in the same manner as RH side.
- Removal of quarter lower trim RH (Refer to REMOVAL
, Step 20
DISASSEMBLY
)
- Removal of quarter lower trim LH
NOTE:
Remove the part in the same manner as RH side.
- Removal of quarter trim lid RH (Refer to REMOVAL
, Step 22
)
- Removal of quarter trim lid LH
NOTE:
Remove the part in the same manner as RH side.
- Removal of the rear window side garnish RH (Refer to REMOVAL
, Step 24
)
- Removal of the rear window side garnish LH
NOTE:
Remove the part in the same manner as RH side.
- Removal of package tray trim panel ASSY (Refer to
REMOVAL
, Step 15)

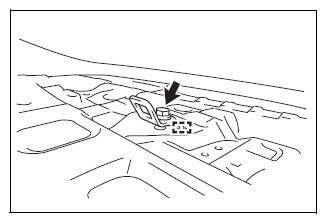

- Removal of the child restraint seat tether anchor bracket
- Remove the bolt.
- Remove the guide and remove the child restraint seat tether anchor bracket.
NOTE:
Remove both parts using the same procedures.
 Courtesy of SUBARU OF AMERICA, INC.
|
