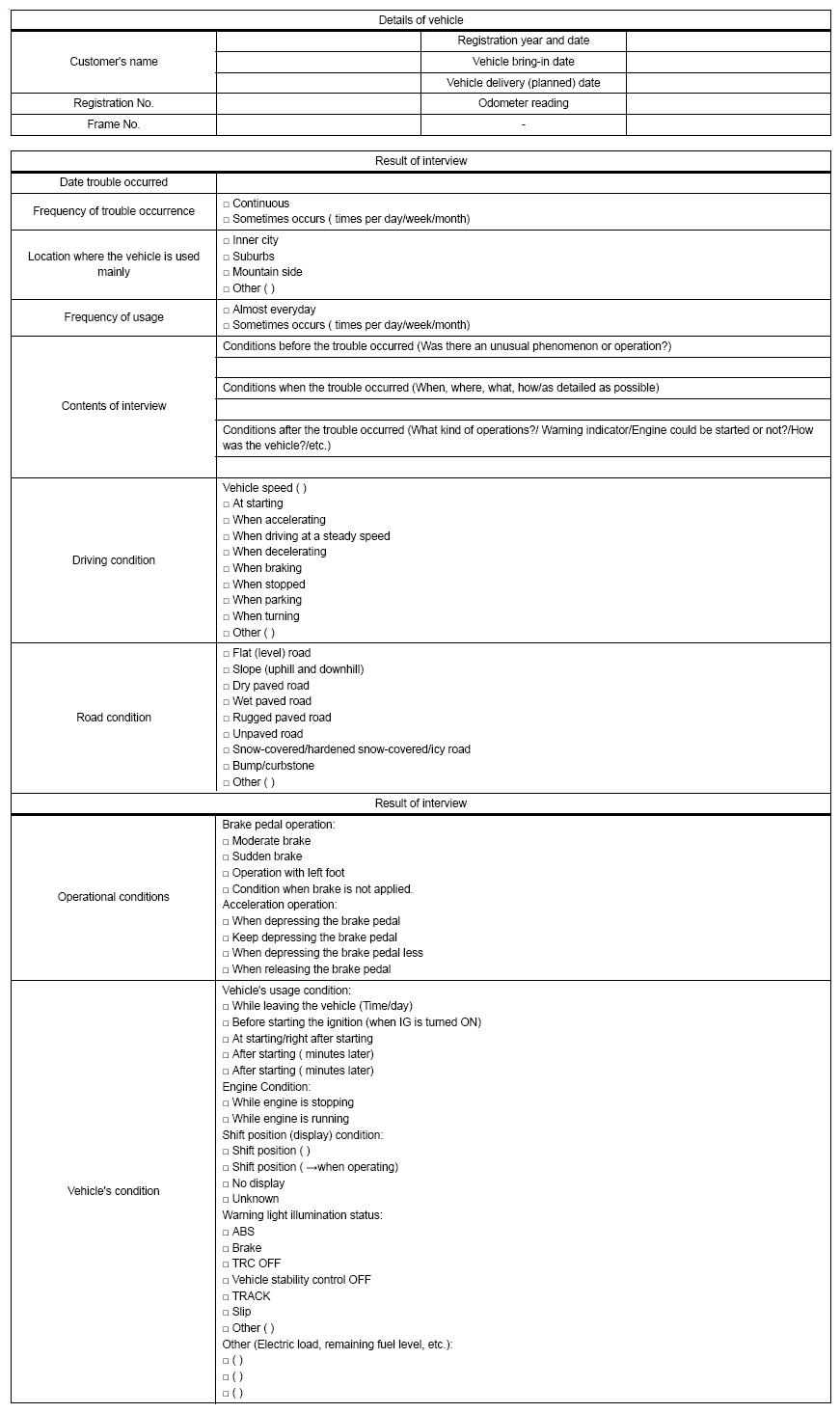

Check List For Interview
 Courtesy of SUBARU OF AMERICA, INC.
|
DIAGNOSTIC CODES DESCRIPTION
| ABS/Vehicle stability control system |
Output code |
| 1st |
|
| 2nd |
|
| th time |
|
| Diagnostic code except for ABS/Vehicle stability control system |
|
FREEZE FRAME DATA
| Item name |
Recorded value |
Unit |
| Time elapsed after the system froze |
|
msec |
| Number of turning IG ON after the system froze |
|
- |
| Stop light switch |
OFF/ON |
- |
| Gear position information |
Unknown/Lo/2nd/3rd/4th/5th/6th/P, N/R |
- |
| System in operation |
ABS/VSC/TRC/HBA/HAC |
- |
| Yaw rate sensor |
|
°/s |
| Lateral G sensor |
|
m/s2 |
| Longitudinal G sensor |
|
m/s2 |
| Wheel speed FR |
|
km/h |
| Wheel speed FL |
|
km/h |
| Wheel speed RR |
|
km/h |
| Wheel speed RL |
|
km/h |
| Accelerator pedal opening rate |
|
% |
| Steering angle sensor |
|
° |
| TRC/VSC OFF mode |
Normal/TRC OFF/VSC OFF |
- |
| VSC SPORT mode |
Normal/SPORT mode |
- |
