Subaru
>>
2019
>>
BRZ Series.Gray
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (Diagnostics) (1 Of 3)
>>
EFI System (FA20)
>>
DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input
>>

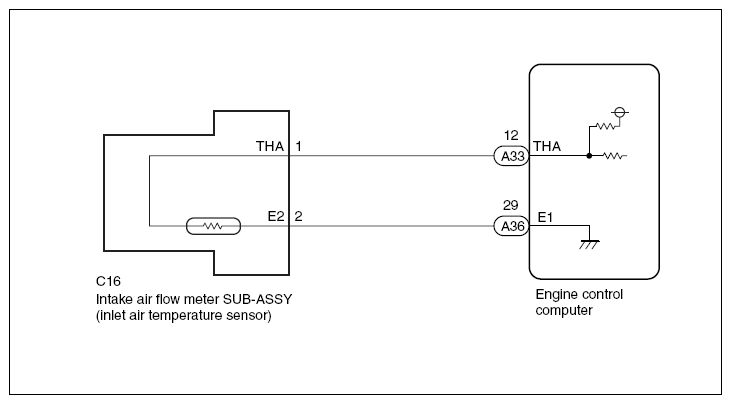

Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
