System Block Diagram

G11257247Courtesy of SUBARU OF AMERICA, INC.

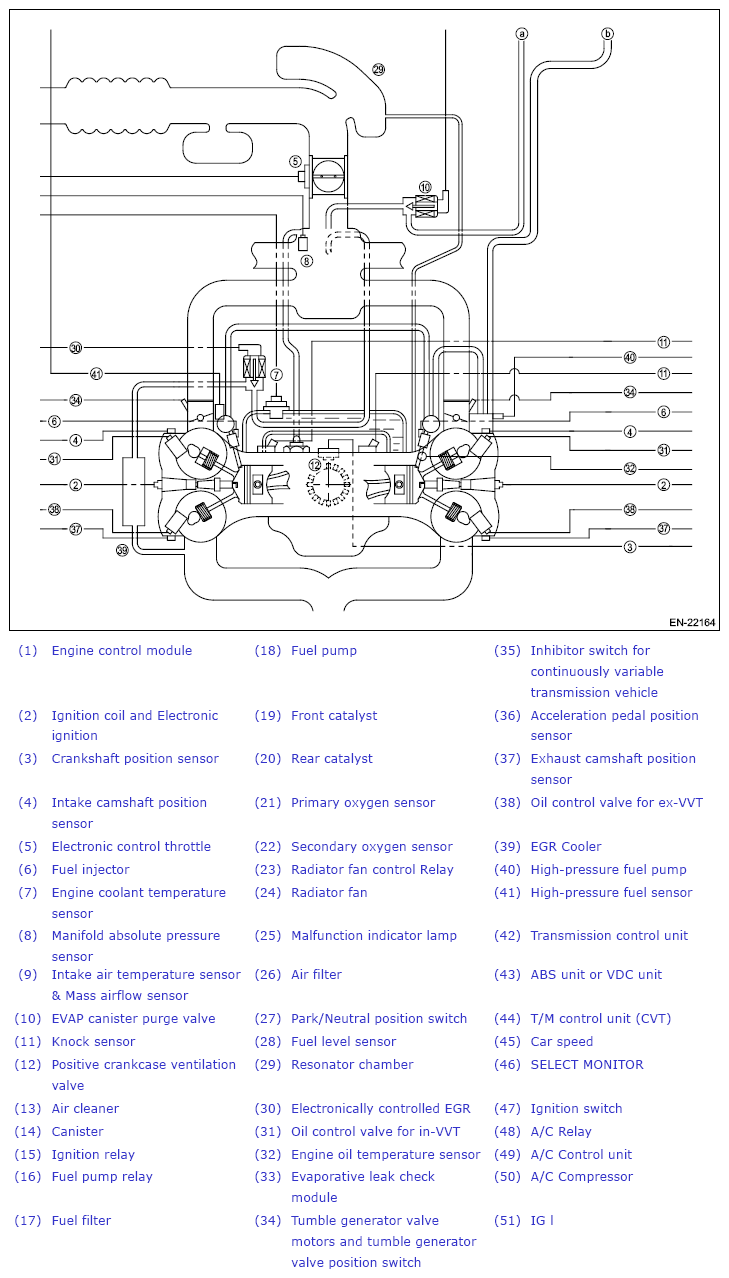

G13238553Courtesy of SUBARU OF AMERICA, INC.

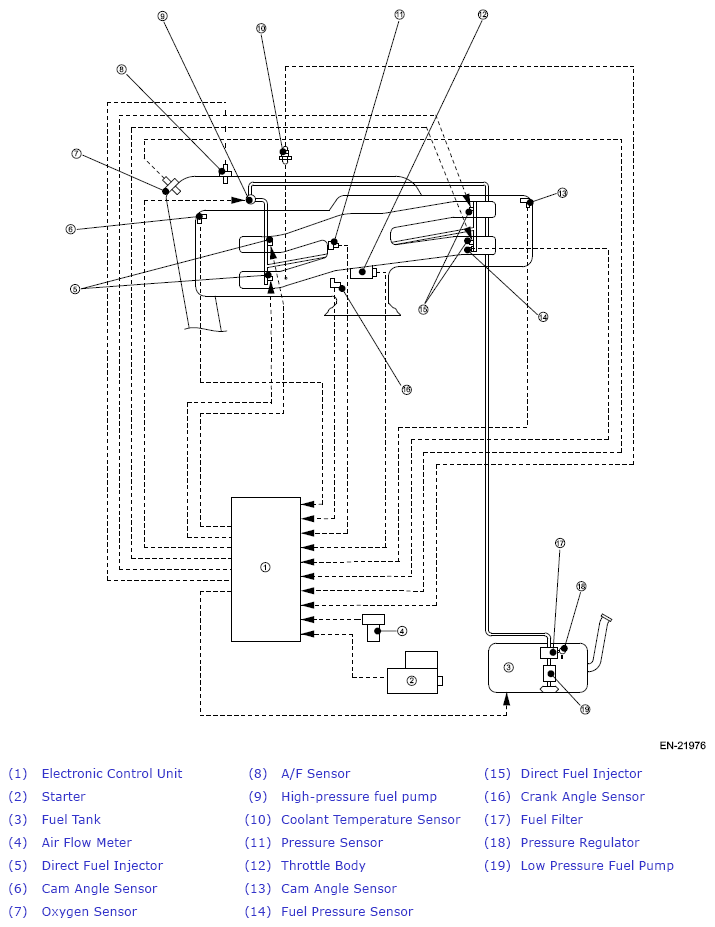

G13238554Courtesy of SUBARU OF AMERICA, INC.
