DTC C1411: Electrical Control Module

DTC detecting condition:

• Judge as malfunction when ECM internal malfunction is detected.
• This malfunction is stored if the electronic parking brake does not operate.

Trouble symptom:

• ABS does not operate sometimes.
• EBD does not operate sometimes.
• VDC does not operate.
• Hill hold does not function.
• EyeSight does not operate.

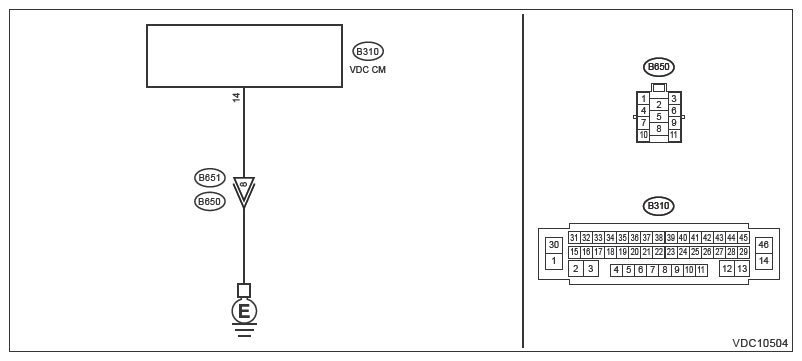

Wiring diagram:

Vehicle dynamics control system Refer to WIRING SYSTEM (CROSSTREK MODEL (HEV))>VEHICLE DYNAMICS CONTROL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK VDCCM & H/U GROUND CIRCUIT (CHECK FOR OPEN CIRCUIT).
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from the VDCCM & H/U.
   3. Measure the resistance between VDCCM & H/U and chassis ground.

      Connector & terminal

      (B310) No. 14 - Chassis ground:

   Is the resistance less than 10 Ω?

   Yes:  Go to  2.

   No:  Repair the VDCCM & H/U ground harness.

2. CHECK POOR CONTACT OF CONNECTORS.

   Is there poor contact of the connector between the battery, ignition switch and VDCCM & H/U?

   Yes:  Repair the connector.

   No:  Go to  3.

3. CHECK CAUSE OF SIGNAL NOISE.

   Are the radio wave devices and electronic components installed correctly?

   Yes:  Go to  4.

   No:  Install the radio wave devices and electronic components properly.

4. CHECK CAUSE OF SIGNAL NOISE.

   Is there a noise source (such as an antenna) installed near the sensor harness and VDCCM?

   Yes:  Install the noise sources apart from sensor harness and VDCCM.

   No:  Go to  5.

5. CHECK VDCCM & H/U.
   1. Connect all connectors.
   2. Using the Subaru Select Monitor, perform the clear memory. Refer to COMMON (DIAG)>CLEAR MEMORY .
   3. Execute the inspection mode. Refer to BRAKE CONTROL (DIAGNOSTICS) (HEV)>INSPECTION MODE .
   4. Read the DTC using Subaru Select Monitor. Refer to BRAKE CONTROL (DIAGNOSTICS) (HEV)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is the same DTC displayed?

   Yes:  Replace the VDCCM & H/U. Refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U) .

   No:  Go to  6.

6. CHECK DETECTION OF OTHER DTCS FOR VDC.

   Read the DTC using Subaru Select Monitor. Refer to BRAKE CONTROL (DIAGNOSTICS) (HEV)>DIAGNOSTIC TROUBLE CODE (DTC) .

   Is any other DTC displayed?

   Yes:  Perform the diagnosis according to DTC. Refer to BRAKE CONTROL (DIAGNOSTICS) (HEV)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

   No:  Currently, it is normal. There may have been a temporary poor contact in the harness and connector or a temporary noise interference.
