Timing Chain

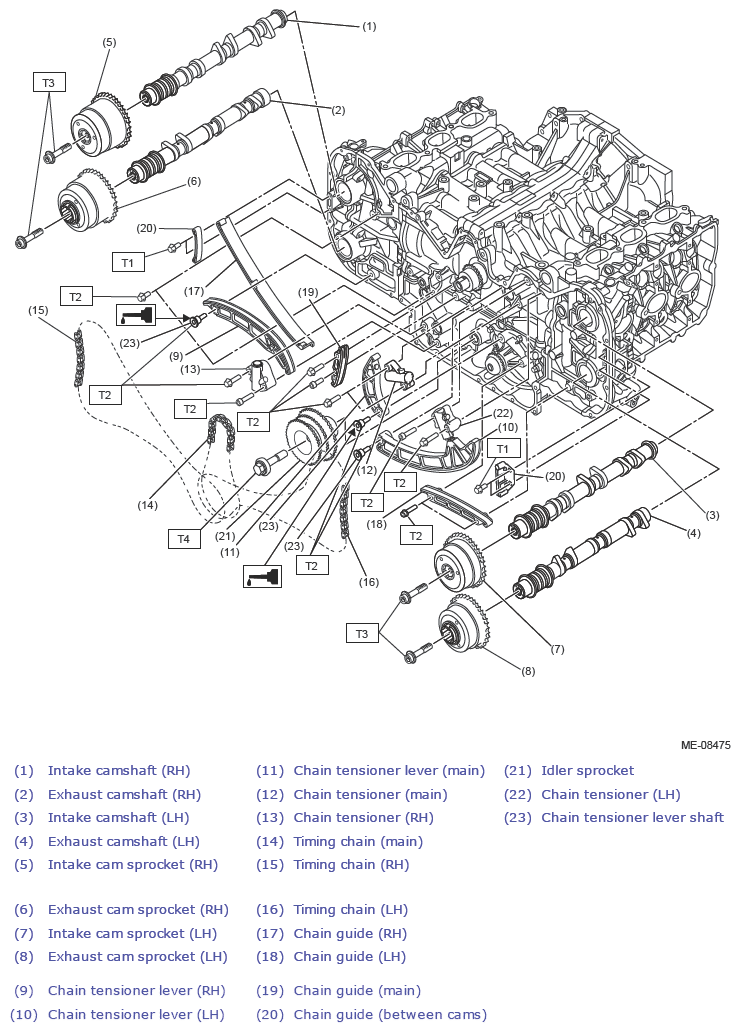

Fig 1: Timing Chain Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 16 (1.6, 11.8)

T3:  Ref. to MECHANICAL (H6DO)>CAM SPROCKET .

T4: 120 (12.2, 88.5)
