Radiator Fan Control Module (Main)

  1. Install the radiator fan control module (main), and install the bolts securing the radiator fan control module (main).

    Tightening torque:

    2.6 N.m (0.3 kgf-m, 1.9 ft-lb)

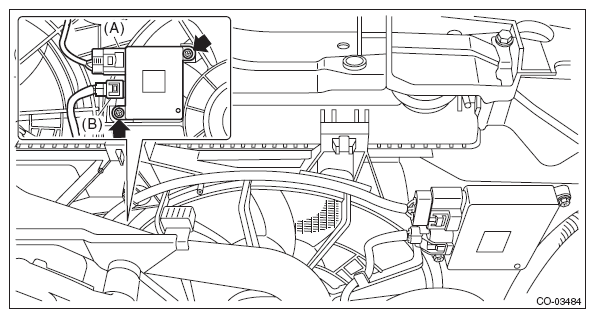

  2. Connect the radiator fan harness connector (A) and radiator main fan motor connector (B) to the radiator fan control module (main).
    G10264217Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air intake duct. Ref. to INTAKE (INDUCTION) (H6DO)>AIR INTAKE DUCT>INSTALLATION .
  4. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  5. Install the collector cover.
