Generator Bracket

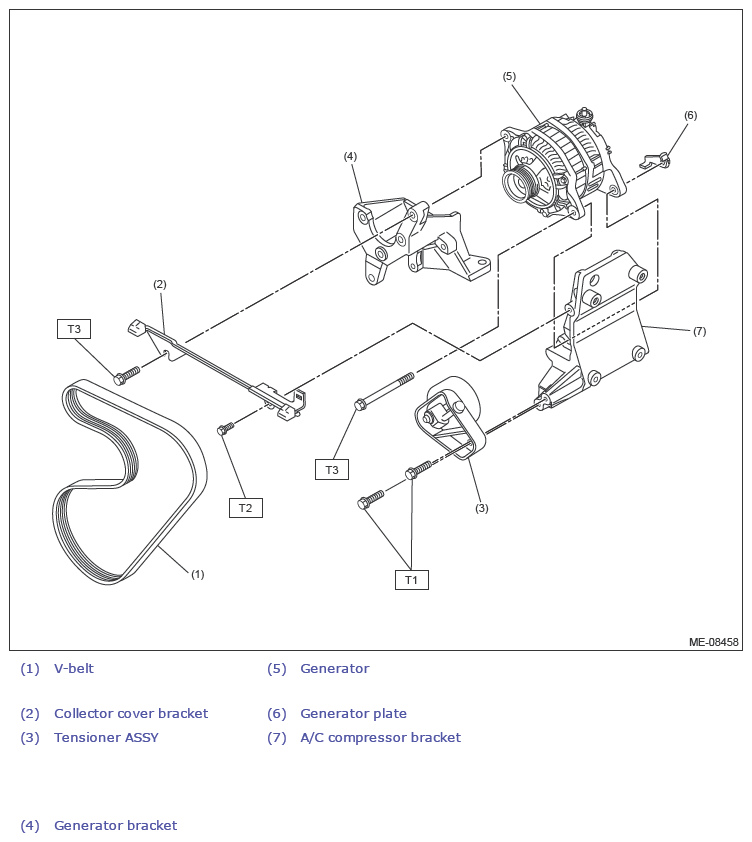

Fig 1: Generator Bracket Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 20 (2.0, 14.8)

T2:  Ref. to STARTING/CHARGING SYSTEMS (H6DO)>Generator>INSTALLATION .

T3:  Ref. to STARTING/CHARGING SYSTEMS (H6DO)>Generator>INSTALLATION .
