RH Side

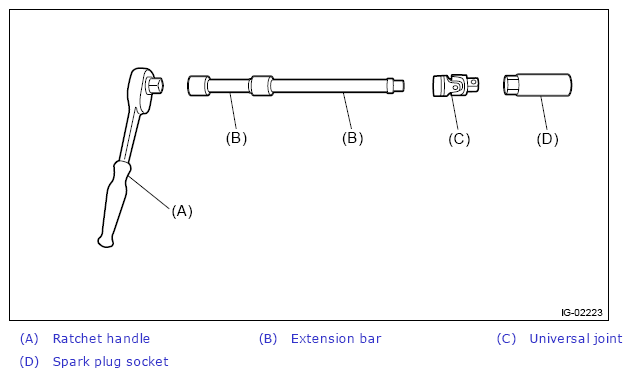

Install the spark plugs using a spark plug socket.
Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the ignition coil.
NOTE: Turn the #5 ignition coil to install it.
Connect the connector (B) to the ignition coil.
Install the engine harness stay (A).
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. Ref. to INTAKE (INDUCTION) (H6DO)>AIR CLEANER CASE>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Install the collector cover.
