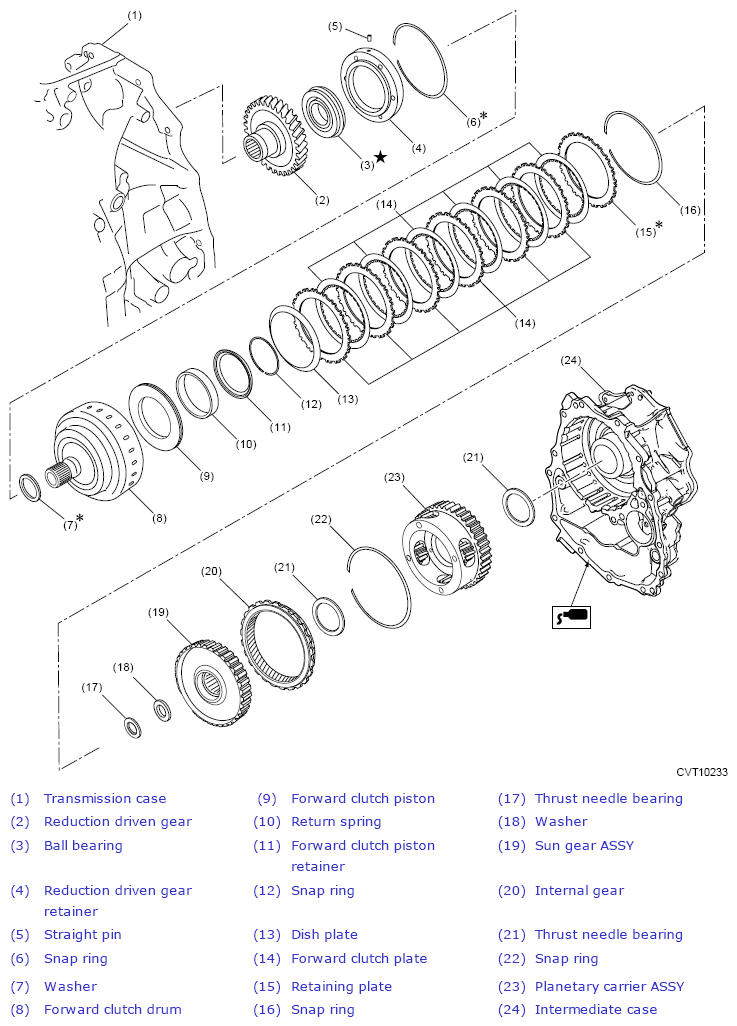

Forward Clutch Assembly And Reduction Driven Gear

WARNING: This page is about a different variant/trim than selected.
G13260757Courtesy of SUBARU OF AMERICA, INC.
