PCV Hose: Removal

CAUTION: Do not remove except when the PCV hose is broken.
  1. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

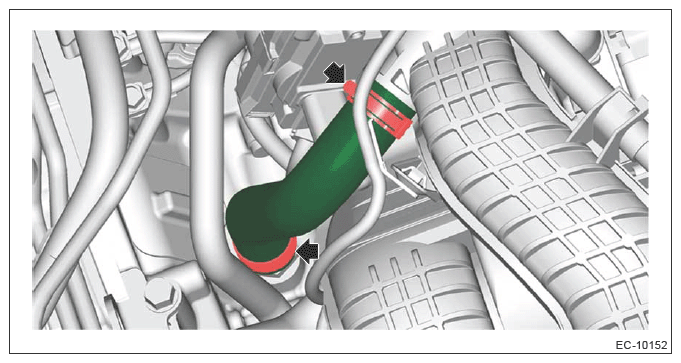

  2. Remove the PCV hose from the intake manifold assembly and the PCV valve.
    G13198552Courtesy of SUBARU OF AMERICA, INC.
