Engine Cooling System

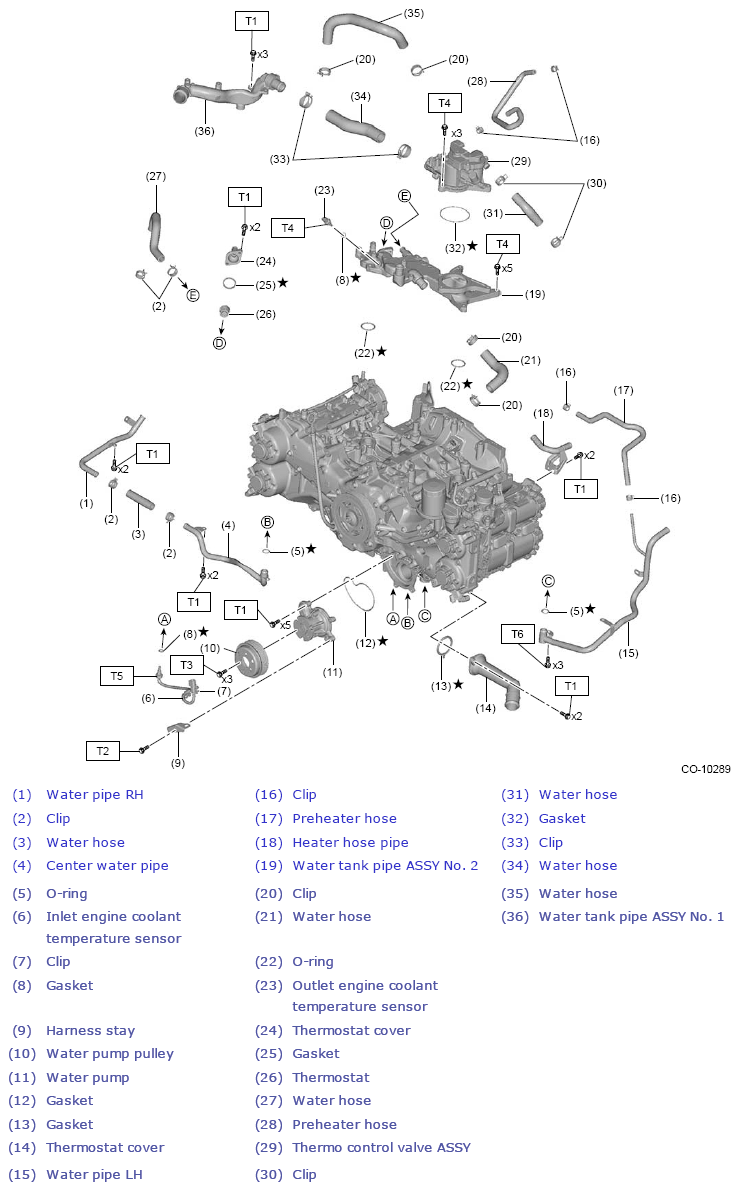

Fig 1: Engine Cooling System Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 8.5 (0.9, 6.3)

T3: 14 (1.4, 10.3)

T4: 16 (1.6, 11.8)

T5: 18 (1.8, 13.3)

T6:  Refer to COOLING (H4DO)>WATER PIPE>INSTALLATION>WATER PIPE LH .
