Radiator Fan Control Module (Main)

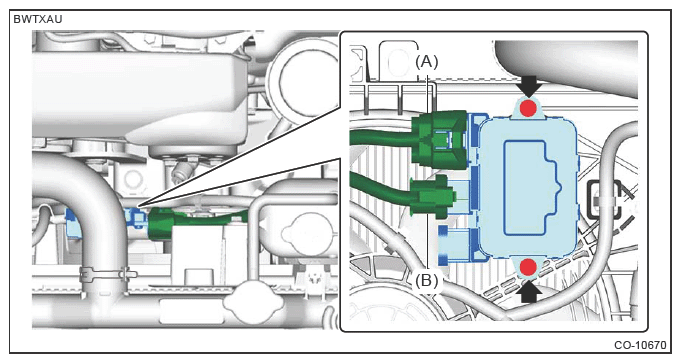

  1. Install the radiator fan control module (main), and connect the connector (A) and connector (B).

    Tightening torque:

    3.8 N.m (0.4 kgf-m, 2.8 ft-lb)

    G13620619Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the ground terminal to battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
