DTC P0685: ECM/Pcm Power Relay Control Circuit/Open: Notes

-
DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

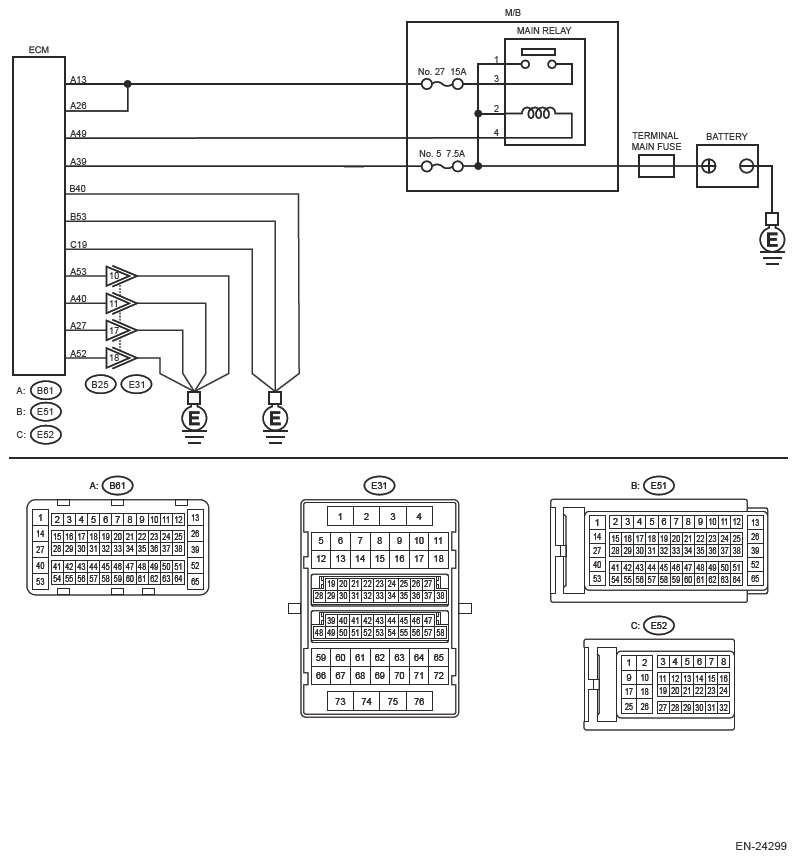

Wiring diagram:

Engine Electrical System Refer to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Refer to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Refer to ENGINE (DIAGNOSTICS) (H4DOTC)>Basic Diagnostic Procedure>PROCEDURE .

CHECK ECM CONNECTOR .
Check the connecting condition of ECM connector.

Is the ECM connector correctly connected?

Yes : Go to 2.

No : Connect the ECM connector correctly.
CHECK HARNESS BETWEEN ECM AND M/B (MAIN RELAY) (SHORT TO GROUND) .
1. Turn the ignition switch to OFF.
2. Remove the main relay.
3. Disconnect the connector from ECM.
4. Measure the resistance between the ECM connector and engine ground.
  Connector & terminal

  (B61) No. 49 - Engine ground:

  Is the resistance 1 MΩ or more?

  Yes : Go to 3.

  No : Repair the short circuit to ground in harness between ECM connector and M/B (main relay).
CHECK HARNESS BETWEEN ECM AND M/B (MAIN RELAY) (SHORT TO POWER SUPPLY) .
1. Turn the ignition switch to ON.
2. Measure the voltage between ECM connector and engine ground.
  Connector & terminal

  (B61) No. 13 (+) - Engine ground (-):

  (B61) No. 26 (+) - Engine ground (-):

  Is the voltage 10 V or more?

  Yes : Repair the short circuit to power supply in harness between ECM connector and M/B (main relay).

  No : Go to 4.
CHECK MAIN RELAY .
1. Turn the ignition switch to OFF.
2. Check the main relay. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>MAIN RELAY .
  Is the check result OK?

  Yes : Repair the poor contact of ECM connector.

  No : Replace the main relay. Refer to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>MAIN RELAY .
