DTC U1712: Lost Lin Communication With Battery "1" Monitor Module: Notes

1. -

DTC detecting condition:

Immediately at fault recognition

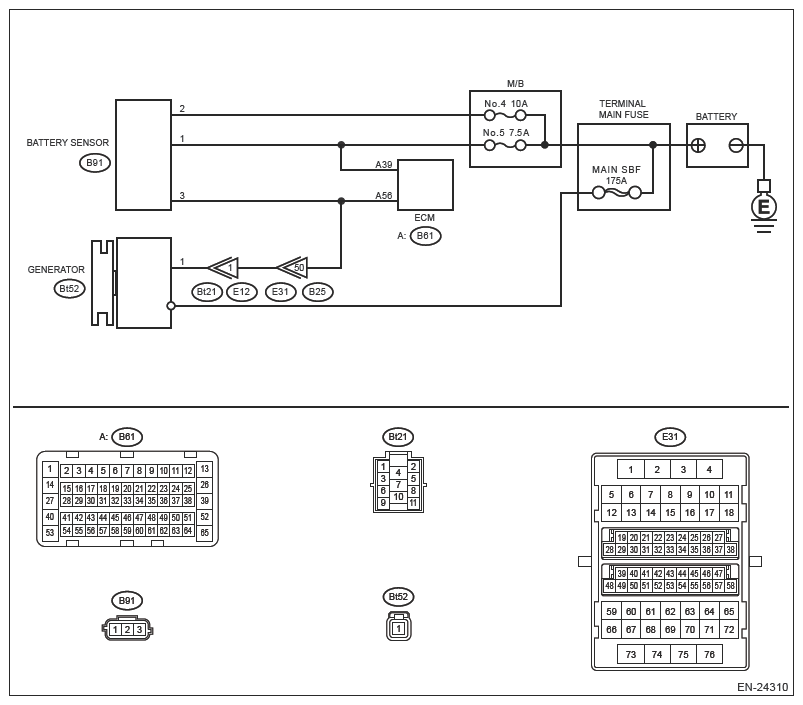

Wiring diagram:

Engine Electrical System Refer to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Refer to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Refer to ENGINE (DIAGNOSTICS) (H4DOTC)>Basic Diagnostic Procedure>PROCEDURE .

CHECK DTC .
Using the Subaru Select Monitor or a general scan tool, read the DTC of [Engine]. Refer to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .

Is DTC U1712 displayed? (Current malfunction)

Yes : Go to 2.

No : The circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.
CHECK ECM CONNECTOR .
Check the connecting condition of ECM connector.

Is the ECM connector correctly connected?

Yes : Go to 3.

No : Connect the ECM connector correctly.
CHECK HARNESS BETWEEN BATTERY AND BATTERY SENSOR CONNECTOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
3. Disconnect the connector from battery sensor.
4. Disconnect the positive terminal of battery.
5. Measure the resistance of the harness between battery positive cable terminal and battery sensor connector.
  Connector & terminal

  Positive cable terminal - (B91) No. 1:

  Positive cable terminal - (B91) No. 2:
Is the resistance less than 1 Ω?

Yes : Go to 4.

No : Repair the open circuit in harness between battery positive cable terminal and battery sensor connector.
CHECK HARNESS BETWEEN ECM CONNECTOR AND BATTERY SENSOR CONNECTOR (OPEN) .
1. Disconnect the connector from ECM.
2. Measure the resistance of harness between ECM connector and battery sensor connector.
  Connector & terminal

  (B91) No. 3 - (B61) No. 56:
Is the resistance less than 1 Ω?

Yes : Repair the poor contact of ECM connector or battery sensor connector.

No : Repair the open circuit in harness between ECM connector and battery sensor connector.
