Side Engine Oil Cooler Pipe

  1. Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>Battery>REMOVAL .
  2. Drain engine coolant. Ref. to COOLING (H4DOTC)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the center exhaust pipe (front). Ref. to EXHAUST (H4DOTC)>Center Exhaust Pipe>REMOVAL>CENTER EXHAUST PIPE (FRONT) .
  4. Remove the clip (A) and bolt, and remove the side engine oil cooler pipe together with the water hose.

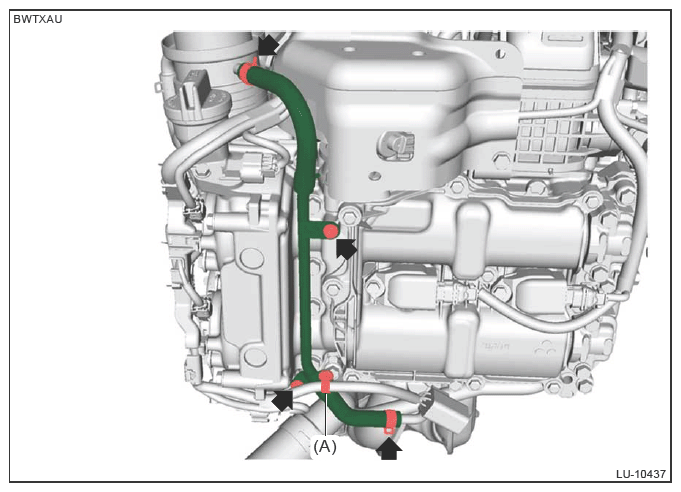

    G13620655Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the water hose from the side engine oil cooler pipe.
NOTE: Remove if necessary.

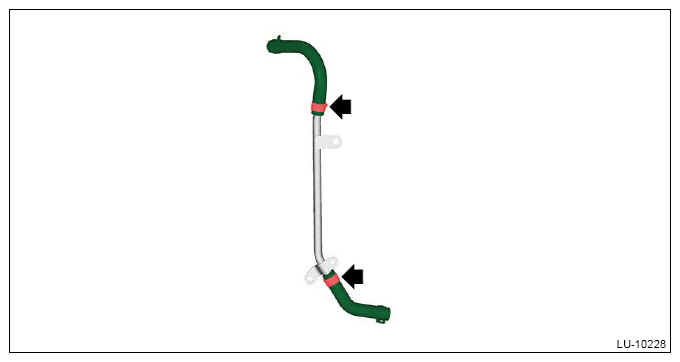

G13199172Courtesy of SUBARU OF AMERICA, INC.
